HSM-320/420 Automatic Die Cutting Machine For Self Adhesive Trademark
HSM-320/420 Automatic Die Cutting Machine For Self Adhesive Trademark

Automatic Self Adhesive Label Die Cutting Machine

Model: HSM-320/420

Automatic Self Adhesive Label Die Cutting Machine – Equipped with servo motor & servo towing, auto feeding system, it delivers high-precision die cutting with one-step operation (die cutting, waste rewinding, rewinding/sheeting); this material-saving machine is ideal for print shops,  production cut custom-shaped adhesive labels efficiently.

  • Die Cutting Speed: 300time/min
  • Max Feeding Diameter: 550mm
  • Max Die Cutting Length: 300mm
  • Max Die Cutting Width: 300mm
  • Positioning Precision: ±0.10mm
  • Max Web Width: 320mm
Online Inquiry
PDF Download
Product Description
Technical Parameters
Product Display
Recommended Products
Product
Description

High-Precision Servo Control: Equipped with advanced servo-driven traction, the machine delivers ±0.10 mm die-cut accuracy, ensuring stable feeding and consistent, high-quality results for barcodes, QR codes, holograms, and self-adhesive labels.


Fully Automatic One-Step Workflow: Combines die cutting, waste removal, and rewinding/sheeting in a single process, improving production efficiency by over 30%, reducing manual labor.


Wide Material & Printing Compatibility: Compatible with self-adhesive paper, PET, PVC, and film labels, and works seamlessly with flexographic, screen, and gravure printing processes, making it ideal for a wide range of labels applications.

Technical
Parameters
Model HSM-320
Die Cutting Speed 300time/min
Max Feeding Diameter 550mm
Max Web Width 320mm
Max Die Cutting Width 300mm
Max Die Cutting Length 300mm
Positioning Precision ±0.10mm
Main Motor Power 2.2kw
Total Power 3.5kw
Power Supply Voltage 220v+10%
Weight About 1500kg
Dimension(LxWxH) 2800×950×1400mm

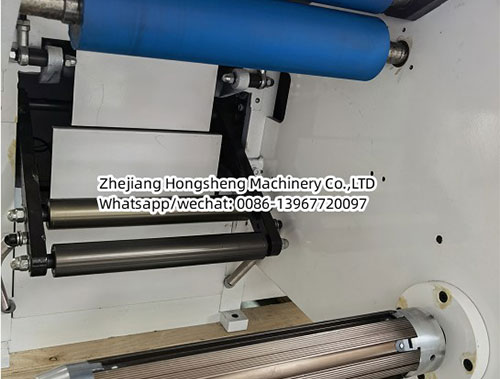

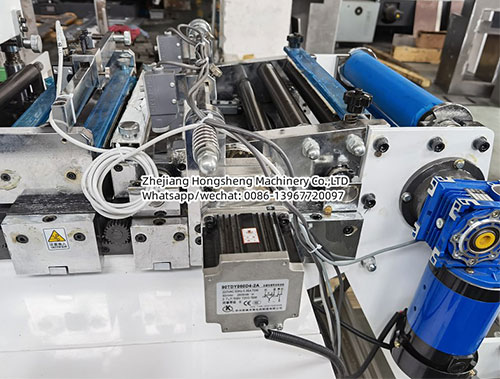

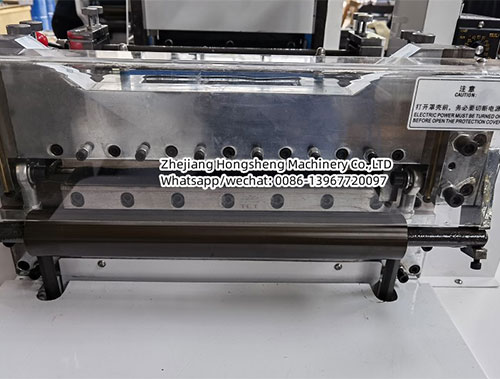

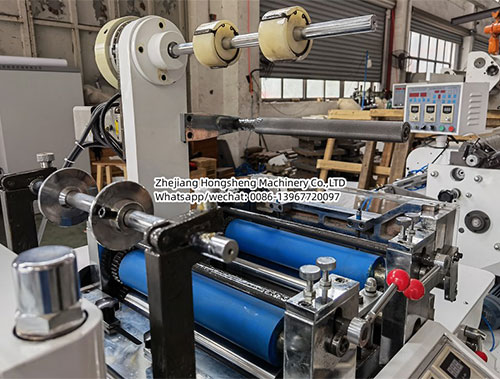

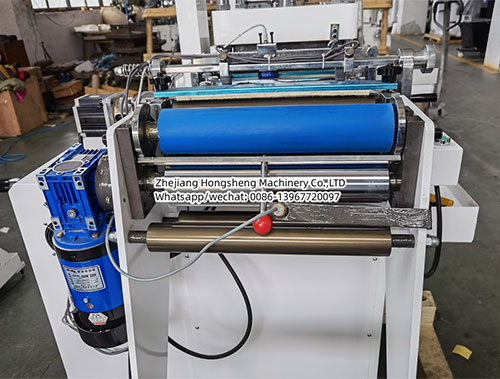

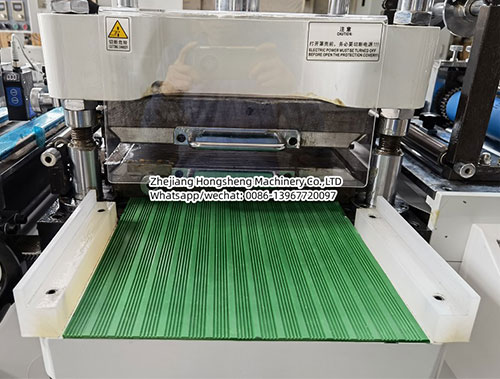

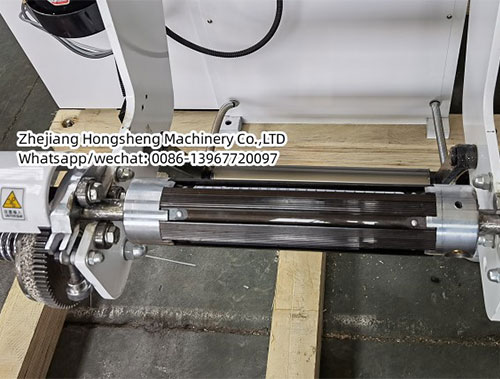

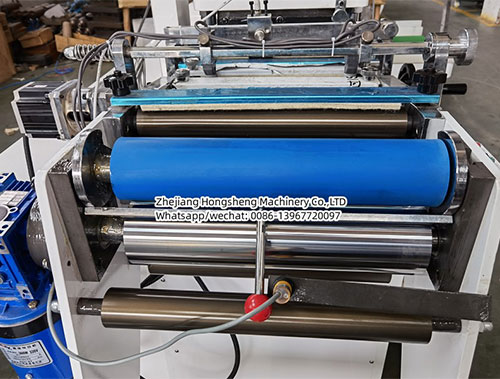

Product Display
