HSFQ-350 High Speed Slitting Machine
HSFQ-350 High Speed Slitting Machine

Automatic Slitter Machine

Model: HSFQ-350

HSFQ-350 Label Die Cutting Machine is suitable for stickers and films, it controls by servo motors, with auto meter and number counter.

Online Inquiry
PDF Download
Product Description
Technical Parameters
Product Display
Recommended Products
Product
Description
Technical
Parameters
Technical

Model

HSFQ350

Max. Slitting speed

300m/min

Max. Slitting width

440mm

Rotary Blades

8sets

Max. Unwinding Dia

800mm

Max. Rewinding Dia

500mm



Electrical Component

No.

Name

Original

1

Servo Motor (unwinding)

Inovance

2

Servo Motor (traction and slitting)

Inovance

3

Servo Motor (up rewinding)

Inovance

5

Motor (down rewinding)



6

Web guide System

Eurdow

9

Counter

Sick

10

Static electricity eliminator



11

Inverter





FAQ

Terms of Payment: 30% deposit before production and 70% balance payment before shipment by T/T

Time of Delivery: Within 45 days after receipt of advanced 30% payment .

Packing: Export-standard and sea-worthy packing

Warrantee period: One year for electric parts (But not contain quick wear parts). The service is for whole life. Once you asked the spare parts, we can send immediately, but courier fee will be paid by you.

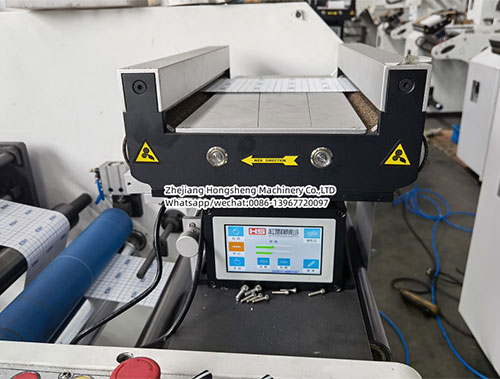

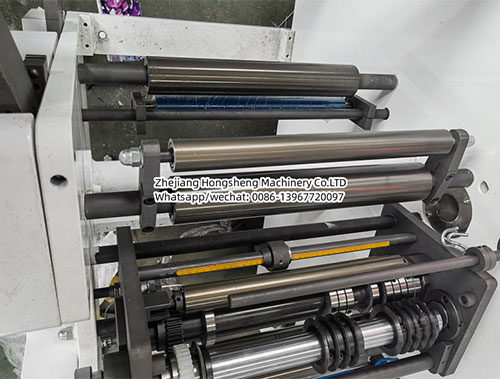

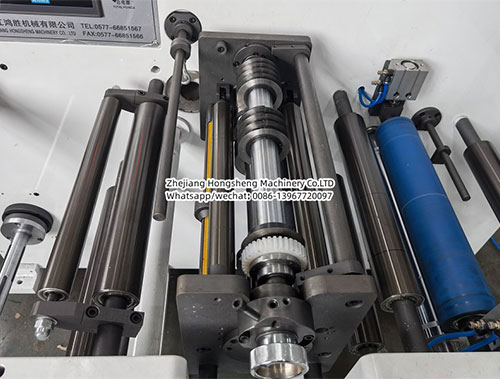

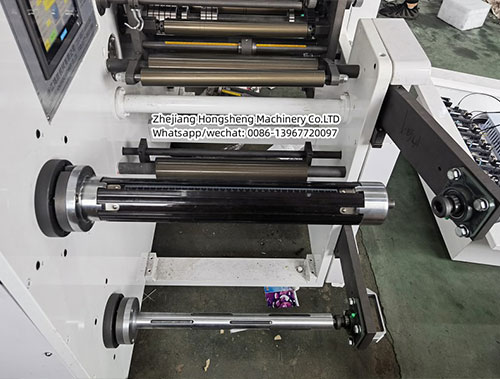

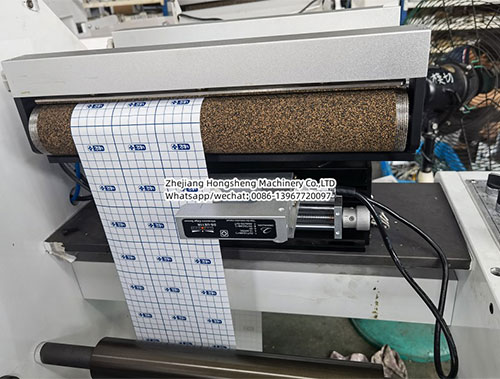

Product Display
