Narrow Stack Flexographic Printing Machine

Model: HSS-650-4

HSS-650-4 label printer machine,flexo label printer sticker machine. 4 colors with 4IR dryers; Each printing station has one IR dryer.

Product
Description

Each printing station has one IR dryer .

Working principles:

Unwinding→Web guide→Printing Unit→IR/UV dryer→Rewinding

Technical
Parameters

Specifications

Model	HSS-650-4C
Max.Web Width	650mm
Max.Printing Width	640mm
Printing Length	177.8-368.3mm/206-460mm/238-539mm
Max.Unwinding Diameter	1000mm
Max.Rewinding Diameter	1000mm
Max.speed	80m/min
Precision of Chromatography	± 0.1mm
Precision of Web Guiding	± 0.02 mm
Thickness of Flexo Plate	1.7 mm/1.14mm
Power	380 V (50 Hz, 3 phases)
Pressure	0.8MPA

Configuration

Turn Bar	Hongsheng	China	1SET
IR Dryer			1SET/Each Station
UV Dryer(Optional)			1SET/Each Station
Ceramic Anilox			1PCS/Each Station
Ink Roller			1PCS/Each Station
Ink Pan			1PCS/Each Station
Plate Cylinder			2PCS/Each Station
Impression Roller			1PCS/Each Station
Horizontal Adjust Handle Wheel			1PCS/Each Station
Waster Rewinding Station			1 SET
Corona (Optional)			1 SET
Video inspecting			1 SET
Crane for die cut cylinder			1 SET

FAQ

Terms of Payment: 30% deposit before production and 70% balance payment before shipment by T/T

Time of Delivery: Within 45 days after receipt of advanced 30% payment .

Packing: Export-standard and sea-worthy packing

Warrantee period: One year for electric parts (But not contain quick wear parts). The service is for whole life. Once you asked the spare parts, we can send immediately, but courier fee will be paid by you.

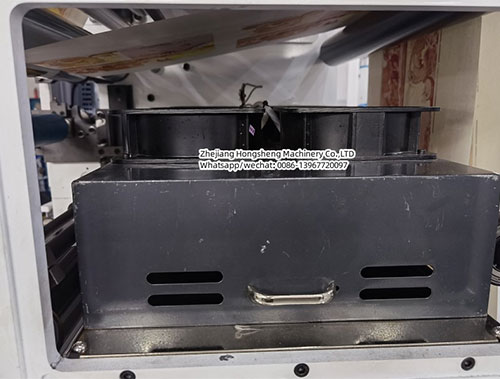

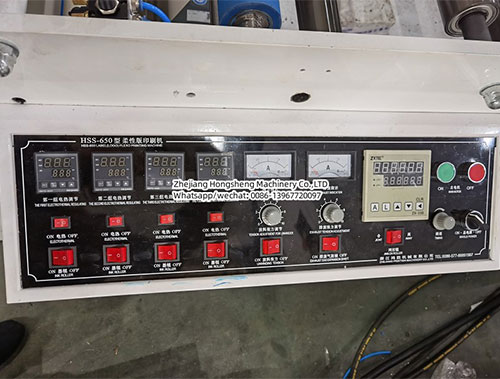

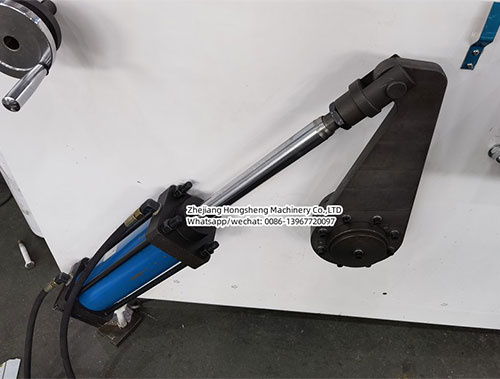

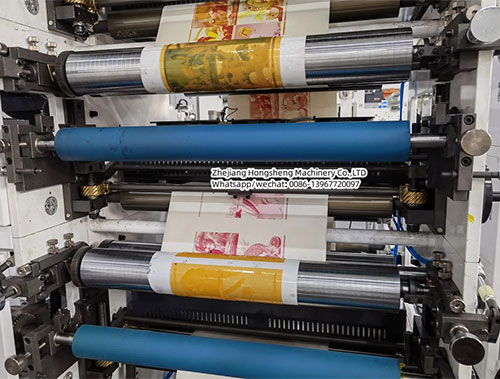

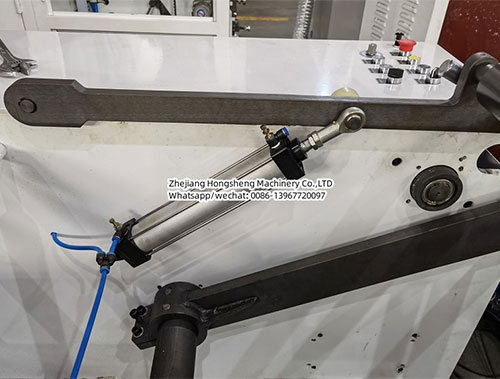

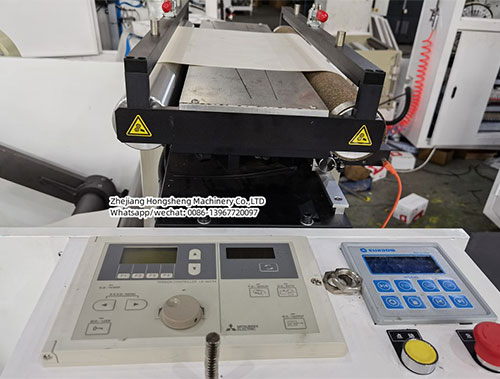

Product Display
