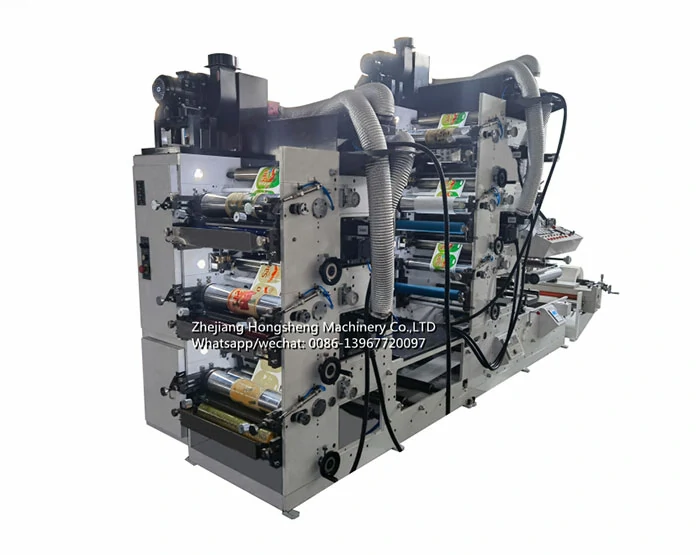

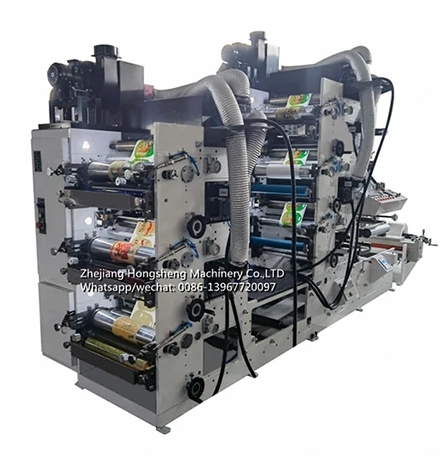

You're comparing label presses, and the spec sheet lists UV curing as a feature. Is it essential, or just a nice-to-have? For a stack flexo printing machine running at production speeds on film and paper substrates, UV curing isn't a luxury—it's what makes high-speed, multi-substrate printing possible. The HSS-450-6C UV Flexographic Printer uses UV curing at every print station, enabling instant drying and adhesion on non-absorbent materials. This article explains what UV curing actually does, why it matters for narrow-web label production, and how the HSS-450-6C integrates UV technology with six-color capability and servo-driven precision.
Q: How many colors can the HSS-450-6C print?
A: The machine has 6 print stations, each driven by its own servo motor. This allows printing up to six colors in one pass, covering CMYK plus spot colors, metallic inks, or varnishes.
Q: What production speed and web width does it support?
A: The HSS-450-6C runs at 80m/min with a maximum material width of 450mm and a maximum printing width of 430mm. Print repeat length ranges from 177.8mm to 355.6mm, with customization available.
Traditional water-based inks dry by evaporation. That works on absorbent paper, but it fails on non-absorbent films—the ink sits on the surface, smears, and never properly adheres. Water-based inks also require inter-station drying, which limits production speed. UV curing solves both problems. UV inks cure instantly when exposed to ultraviolet light, so there's no drying delay between stations. The ink solidifies on contact, bonding firmly to paper, film, and foil alike. For label converters running PE, BOPP, and PET substrates, UV curing isn't optional—it's the enabling technology that makes the job possible. The HSS-450-6C uses UV curing at each station, so the full 80m/min speed is achievable regardless of substrate.
On a water-based press, the web must travel through drying tunnels between print stations, and the press speed is limited by how fast the ink dries. UV curing eliminates that constraint. The moment the ink hits the substrate, it passes under a UV lamp and cures. No drying tunnels, no speed reduction, no risk of smearing on the next station. The HSS-450-6C takes full advantage of this—its 80m/min rated speed applies across the full range of supported substrates.
UV inks are formulated to adhere to non-porous surfaces. On PE, BOPP, and PET films, water-based inks bead up and fail to bond. UV inks cure into a hard, scratch-resistant film that stays put through handling, converting, and end-use. For label applications on plastic containers or flexible packaging, this adhesion is essential. The HSS-450-6C's UV system delivers consistent curing energy across the web width, so adhesion is uniform from edge to edge.
UV curing and multi-color printing are complementary capabilities. Six print stations allow complex designs—CMYK plus spot colors, or extended gamut work. UV curing makes those six stations practical at high speed. Without UV, each station would require drying time, and the cumulative drying delays would make six-color printing impractically slow. With UV, each station cures instantly, and the web moves to the next station without delay. The HSS-450-6C integrates both: six servo-driven print units, each followed by a UV curing lamp, delivering multi-color output at full production speed.
Each print station on the HSS-450-6C has its own servo motor, delivering ±0.1mm registration accuracy across all six units. In a stack-type press, the web travels between vertically arranged stations. Independent servo control compensates instantly for any tension variation, maintaining registration regardless of what happens upstream. This precision is especially important when printing fine text, barcodes, or multi-color images where misalignment would be visible.
Stack-type presses arrange printing units vertically, saving floor space compared to CI or in-line presses. The HSS-450-6C uses this compact design to fit six colors plus UV curing into a 2.2×1.3×2.4m footprint. For converters operating in space-constrained facilities, this space efficiency is a practical advantage—without compromising on color capacity or print quality.
| Parameter | Specification |
|---|---|
| Model | HSS-450-6C |
| Max. Material Width | 450mm |
| Max. Printing Width | 430mm |
| Print Repeat Length | 177.8-355.6mm (or customized) |
| Printing Colors | 1-6 colors |
| Printing Speed | 80 m/min |
| Max. Unwind/Rewind Diameter | Φ600mm |
| Total Power | 30kw |
| Plate Thickness | 2.38mm |
| Overall Dimensions | 2.2×1.3×2.4m |
| Machine Weight | 3800kg |
| Working Voltage | 380V 3-phase 50Hz/60Hz |
| Drive System | Servo motor per unit |
| Curing System | UV curing at each station |
The HSS-450-6C serves label and packaging applications where UV curing provides clear advantages:
Self-adhesive labels are the machine's primary application. For consumer goods, logistics, and industrial marking, the six-color capability covers brand colors, instructional text, barcodes, and decorative elements—all in one pass. UV curing ensures the printed image resists scuffing and moisture.
Food service and retail packaging often require vibrant, food-safe printing. The HSS-450-6C handles paper substrates with UV inks that meet the durability requirements of cups and bags, and the instant curing allows immediate downstream converting.
Burger papers, candy wraps, and butter papers require quick-turn, multi-color printing. The UV system cures instantly, so printed rolls are ready for downstream converting immediately. For PE, BOPP, and PET films, UV curing provides the adhesion that water-based inks can't match.
For these non-absorbent substrates, UV curing is not just beneficial—it's required. The HSS-450-6C handles them with consistent quality, making it suitable for a wide range of flexible packaging applications.
Q: What's the difference between UV flexo and water-based flexo?
A: UV flexo uses ultraviolet light to instantly cure inks, enabling high-speed printing on non-absorbent substrates like films. Water-based flexo relies on evaporation, which limits speed and prevents printing on non-porous materials. UV is essential for label and flexible packaging converters working with film substrates.
Q: What substrates can the HSS-450-6C handle?
A: The machine handles paper, film, and foil substrates. UV inks allow printing on non-absorbent materials like PE, BOPP, and PET films, as well as paper stocks from 30-250 g/m².
Q: How does the servo drive system improve print quality?
A: Each of the six print stations has its own servo motor. This independent drive maintains ±0.1mm registration accuracy across all stations, eliminating the tension propagation and registration drift that affect mechanically linked systems.
Q: What support is available after purchase?
A: A guide booklet ships with the machine. The equipment undergoes a test run before delivery. Technologists can be dispatched for installation and adjustment, with training available. Consumable spare parts are provided free for one year.
Q: Can the machine be customized for specific applications?
A: Yes. Print repeat length, plate thickness, and voltage can all be customized. Optional configurations include UV dryers, video inspection systems, extra die-cutting stations, cold stamping, and corona treatment.
A stack flexo printing machine with six-color UV curing, 80m/min speed, and ±0.1mm registration is the practical choice for label and packaging converters who need instant drying and substrate versatility. The HSS-450-6C UV Flexographic Printer delivers 6 print stations with independent servo motors, 450mm maximum material width with 430mm printing width, 177.8-355.6mm print repeat range, 80m/min production speed, UV curing at each station for instant drying and adhesion on films, ±0.1mm registration accuracy, and a compact 2.2×1.3×2.4m footprint.
Whether you're producing self-adhesive labels, paper cups, food wrappers, or flexible packaging films, this machine offers the UV curing capability, color capacity, and precision that modern narrow-web operations demand. With customizable configurations and comprehensive after-sales support, it's built for reliable performance across diverse production schedules.
Contact Hongsheng Machinery for a UV flexo press configuration assessment → their team can help you select the right print stations, UV curing options, and substrate handling configuration for your specific label and packaging applications. Get a press with UV curing that keeps up with your production speed—and your substrate range.
