Home -- Product -- Label Die Cutting Machine
HSD-320-CB Label Rotary Die Cutter
HSD-320-CB Label Rotary Die Cutter

Label Rotary Die Cutter

Model: HSD-320-CB

Die-cutting speed: 100m/min

Max.web width: 320mm

Die-cutting length: 177-476mm

Max.unwinding dia: 1000mm



Label Rotary Die Cutter, a versatile Label Die Cutting Machine, combines outstanding precision and efficient performance to produce perfect labels

Online Inquiry
PDF Download
Product
Description

Large diameter reel: maximum unwinding diameter 1000mm, rewinding diameter 480mm, reduce the frequency of reel change and improve continuous production efficiency; 320mm maximum width with 177-476mm adjustable die-cutting length.



High-speed production capacity: maximum operating speed is 120 meters/minute, die-cutting speed is stable at 100 meters/minute, adapting to batch label production,improving production capacity.



High-precision cutting control: ±0.1mm color  precision control system is adopted to ensure accurate die-cutting position, even complex graphics or multi-color labels can achieve smooth edges and clear contours.

Technical
Parameters

Max Speed

120m/min

Die-cutting speed

100m/min

Max.web width

320mm

Die-cutting length

177-476mm

Max.unwinding dia

1000mm

Max Rewinding Dia.

480mm

Precision of Chromatography

±0.10mm

Voltage

220V

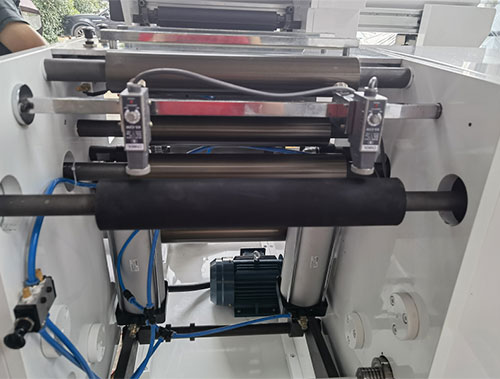

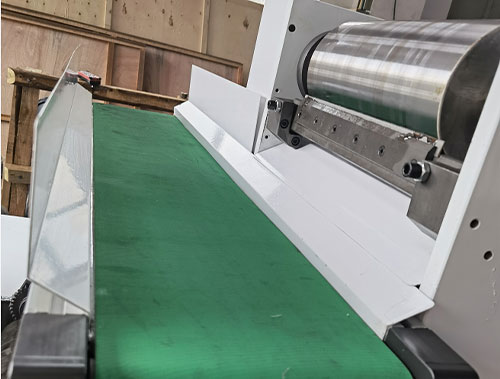

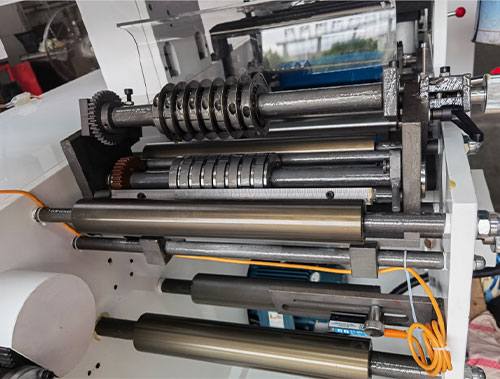

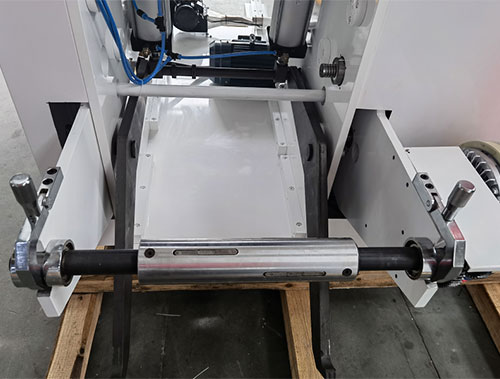

Product Display
