3 Colors Stack Flexo Printing Machine for labels

Model: HSS-320-3C

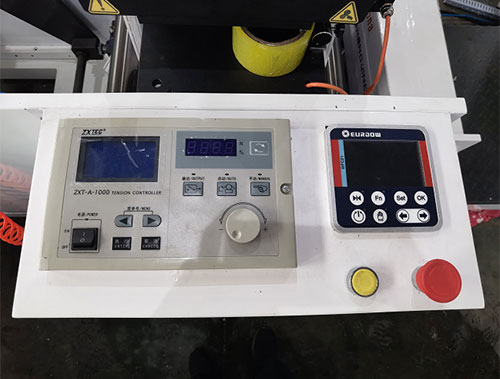

3 Colors Stack Flexo Printing Machine for Labels is equipped with an independent UV drying system, embossing technology, achieving ±0.1mm high-precision registration and 80 m/min high-speed production. It supports printing on multiple materials such as glassine substrates with films (BOPP/PET/PE), self-adhesive labels,papers and paper cup. It has automatic tension controller which can print by water based ink and UV ink.

Product
Description

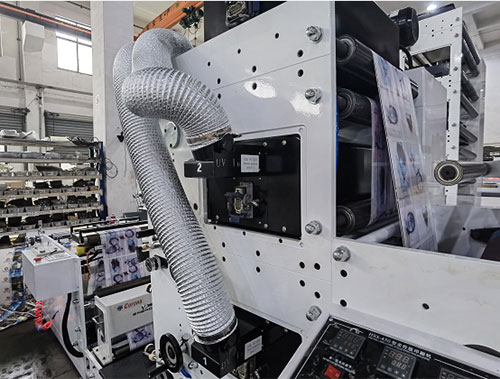

Independent UV drying system: Each printing station is equipped with a dedicated UV dryer, and the UV lamp is 90% more energy-efficient than traditional systems, reducing standby power consumption.

Rotary flexographic technology: The central impression cylinder provides 360° uniform pressure, minimizes vibration, and improves registration accuracy.

Quick-change cylinder system: The downtime for job switching is reduced to 15 minutes, and gear drive is used to ensure smooth ink transfer.

Registration accuracy of ±0.1mm.

Technical
Parameters

Specifications

Model	HSS-320-3C
Max.Web Width	320mm
Max.Printing Width	310mm
Printing Length	177.8-368.3mm/206-460mm/238-539mm
Max.Unwinding Diameter	1000mm
Max.Rewinding Diameter	600mm
Max.speed	80m/min
Precision of Chromatography	± 0.1mm
Precision of Web Guiding	± 0.02 mm
Thickness of Flexo Plate	1.7 mm/1.14mm
Power	380 V (50 Hz, 3 phases)
Pressure	0.8MPA

Configuration

Turn Bar	Hongsheng	China	1SET
IR Dryer			1SET/Each Station
UV Dryer			1SET/Each Station
Ceramic Anilox			1PCS/Each Station
Ink Roller			1PCS/Each Station
Ink Pan			1PCS/Each Station
Plate Cylinder			2PCS/Each Station
Impression Roller			1PCS/Each Station
Horizontal Adjust Handle Wheel			1PCS/Each Station
Rotary Die Cutting Station			1SET
Waster Rewinding Station			1SET
Lamination Device			1SET

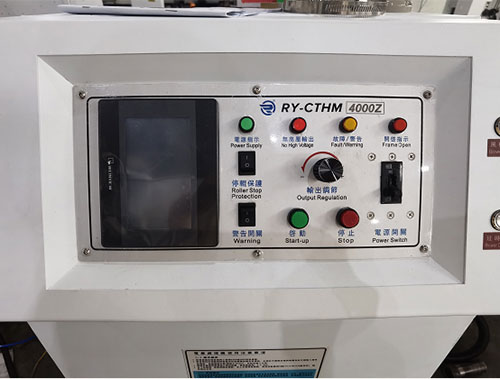

Ceramic Corona			1SET
Video inspecting (Optional)			1SET

FAQ

Terms of Payment: 30% deposit before production and 70% balance payment before shipment by T/T

Time of Delivery: Within 45 days after receipt of advanced 30% payment .

Packing: Export-standard and sea-worthy packing

Warrantee period: One year for electric parts (But not contain quick wear parts). The service is for whole life. Once you asked the spare parts, we can send immediately, but courier fee will be paid by you.

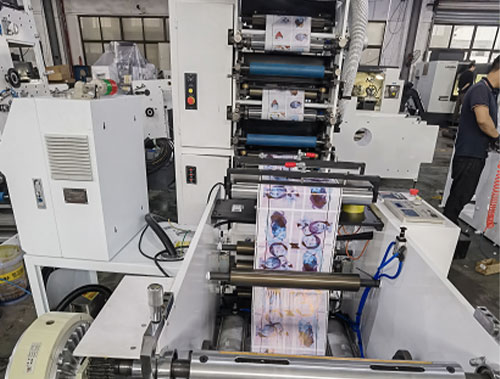

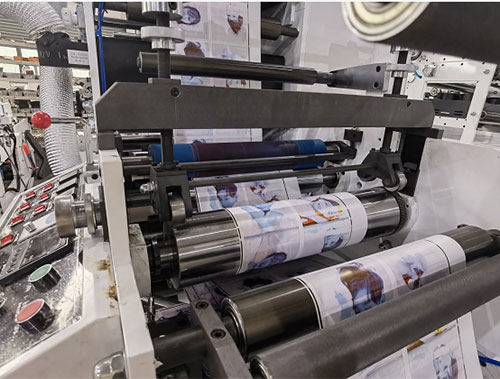

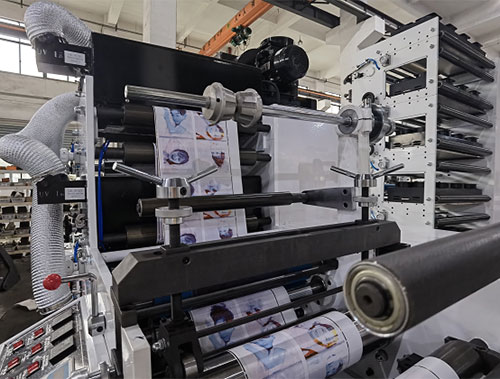

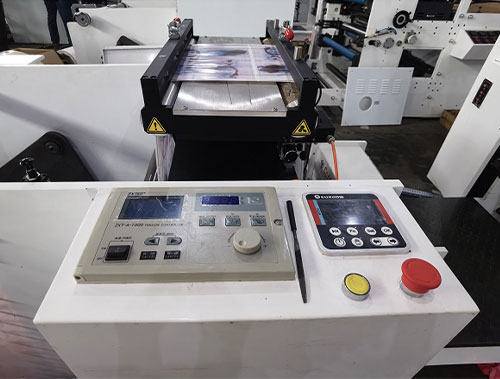

Product Display
