Why Does Your Label Finishing Line Need a Die-Cutting and Folding Machine?

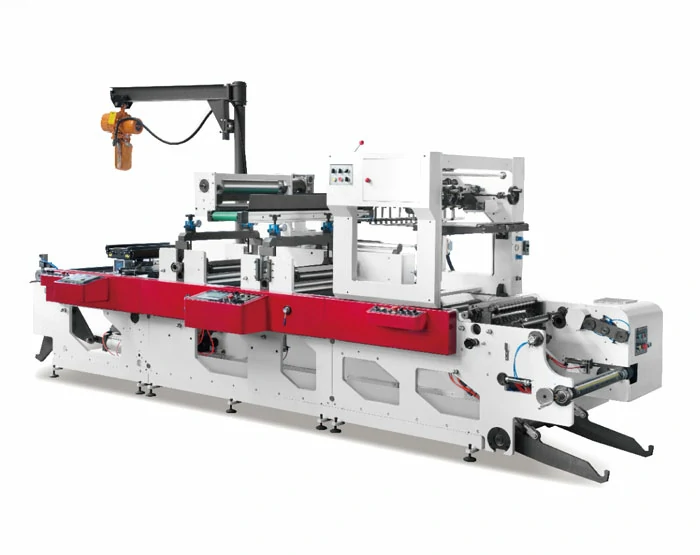

You're running a label converting operation — producing logistics labels, product labels, or small-item packaging. The printing is done, the material is ready, but the finishing stage is where value is added — or lost. A label folding machine that integrates die-cutting and folding into a single pass does more than just cut and fold. It eliminates handling, reduces labor, and delivers finished labels ready for application. The HSDW-570 is one such system — a label die-cutting and folding machine designed for inserting paper and leaflet folding in logistics labels and small-item packaging markets. This guide covers what a die-cutting and folding machine does, why the combination matters, and what to look for when adding one to your finishing line.

From Flat Label to Finished Product – Cutting and Folding in One Continuous Flow

A die-cutting and folding machine takes flat label material and transforms it into finished, folded labels in a single pass. The process starts with flat-bed die-cutting, where the label is cut to its final shape with precision. Next, the folding unit inserts paper or leaflets into the label structure — a critical step for logistics labels that require multi-layer documentation. The result is a finished label ready for application, without additional handling or separate folding steps.

The Flat Bed Die-Cutting Station

The flat bed die-cutting station cuts labels with consistent precision. Unlike rotary die-cutting, flat-bed technology provides clean, accurate cuts across a wide range of label materials — from paper to film to synthetic substrates.

The Folding Unit – Where Value Is Added

The folding unit is where the machine distinguishes itself from standard die-cutters. It inserts paper or leaflets directly into the label structure. For logistics labels, this means the shipping documentation is part of the label itself — eliminating separate inserts and reducing handling.

Flat Bed Die-Cutting – The Precision That Ensures Every Label Meets Specification

Flat-bed die-cutting is the foundation of the HSDW-570's precision. Unlike rotary die-cutting, which uses a rotating cylinder, flat-bed die-cutting presses a flat die onto the material. This provides several advantages: cleaner cuts on thicker materials, more consistent registration, and longer die life.

Clean Cuts on Demanding Materials

Logistics labels and small-item packaging often use thicker or multi-layer materials. Flat-bed die-cutting delivers clean, consistent cuts without the edge deformation that can occur with rotary systems.

Consistent Registration for Complex Labels

For labels that combine printing, folding, and die-cutting, registration is critical. The HSDW-570 maintains consistent alignment across all operations — ensuring that the cut, the fold, and any printed graphics are perfectly positioned relative to each other.

Paper and Leaflet Folding – The Finishing Step That Adds Value to Your Labels

The folding capability is what sets the HSDW-570 apart from standard die-cutting machines. It inserts paper or leaflets directly into the label structure — a critical feature for logistics labels that require multi-layer documentation.

Logistics Labels with Integrated Documentation

In the logistics industry, labels often need to include shipping documentation, customs forms, or multi-part tracking information. The HSDW-570 handles this by folding and inserting paper directly into the label during production.

Small-Item Packaging Applications

Beyond logistics, the machine is suitable for small-item packaging markets. This includes retail labels that require folded inserts, product information leaflets, or promotional materials integrated into the label structure.

Logistics Labels, Small-Item Packaging, and Beyond – Where This Machine Fits

The HSDW-570 is designed for specific applications where label folding adds value.

• Logistics labels: Multi-layer labels that combine shipping documentation, tracking information, and adhesive backing in a single structure

• Small-item packaging: Retail labels with integrated product information, promotional inserts, or multi-part documentation

• E-commerce shipping labels: Labels that combine address information, return documentation, and customs forms

• Pharmaceutical and healthcare labels: Labels with integrated patient information leaflets or instruction inserts

The machine's ability to handle both die-cutting and folding in a single pass makes it suitable for any application where a label needs to include additional paper or documentation.

Specifications That Define Performance and Reliability

How Label Converters Evaluate Die-Cutting and Folding Equipment

What is the primary application of the HSDW-570?
The machine is designed for logistics labels and small-item packaging markets, specifically for inserting paper or leaflets into label structures.

How does flat-bed die-cutting compare to rotary die-cutting?
Flat-bed die-cutting provides cleaner cuts on thicker materials and more consistent registration, making it suitable for logistics labels that often use multi-layer substrates.

Can the machine handle different label sizes?
The HSDW-570 is designed for logistics labels and small-item packaging applications. The specific size range should be confirmed with the manufacturer based on your requirements.

What is the folding capacity of the machine?
The machine inserts paper or leaflets into labels. The specific paper weight and thickness capacity should be confirmed with the manufacturer.

Is the machine compatible with label counting and inspection equipment?
Yes. The HSDW-570 works with label counting and inspection machines like the HSW-450X, which are used for inspecting print and die-cutting quality.

Let's Match a Die-Cutting and Folding System to Your Label Production Targets

Selecting a label die-cutting and folding machine comes down to three factors: application (match your label type), folding requirement (match your paper/leaflet insertion needs), and integration (match your existing finishing line). Contact Hongsheng Machinery for a customized quote → —their team can help you select the right HSDW-570 configuration for your specific label production needs.

Hongsheng Machinery manufactures label finishing equipment including die-cutting, folding, and inspection systems. The HSDW-570 Label Die Cutting And Folding Machine combines flat-bed die-cutting with paper and leaflet folding in a single pass, designed for logistics labels and small-item packaging markets. The machine integrates with label counting and inspection equipment for a complete finishing solution. Hongsheng Machinery provides comprehensive technical support, installation guidance, and after-sales service. Connect with Hongsheng Machinery to discuss your label types, folding requirements, and production volume targets.
