Which Label Die Cutting Machine Is Right for Your Production?

You’re running a label converting operation — self-adhesive labels, thermal paper, or plastic films. The printing is done, but the finishing stage — die-cutting, waste stripping, and rewinding — determines whether your labels meet customer expectations. A label die cutting machine is the equipment that transforms printed rolls into finished, ready-to-apply labels. But with rotary, flatbed, and high-speed options available, choosing the right machine requires understanding what each technology delivers. This guide covers the key differences between rotary and flatbed die-cutting, the specifications that define performance, and what to look for when selecting a die-cutting system for your label production line.

From Raw Roll to Finished Labels – Die-Cutting, Stripping, and Rewinding in One Pass

A label die-cutting machine takes printed label material from a roll and performs three critical operations in one continuous process: die-cutting the label shape, stripping away the waste matrix, and rewinding the finished labels onto a core. Some models also integrate with flexo printing machines for seamless printing and die-cutting in a single line. This integrated approach eliminates the need for separate finishing steps, reducing handling, labor, and the risk of registration errors that occur when moving partially finished work between machines.

Die-Cutting – Creating the Label Shape

The die-cutting station uses sharp steel rules mounted on a cylinder or flatbed to cut through the label material without cutting the release liner. This kiss-cut process leaves the labels on the liner, ready for dispensing.

Waste Stripping – Removing the Matrix

After cutting, the waste matrix — the excess material between labels — is stripped away automatically. This eliminates a separate offline stripping step and keeps the line running continuously.

Rewinding – Finished Rolls Ready for Use

The finished labels are rewound onto cores, ready for dispensing or application. The rewinding unit maintains consistent tension to ensure tight, even rolls.

Rotary or Flatbed – How to Match Die-Cutting Technology to Your Production Needs

The choice between rotary and flatbed die-cutting is one of the most important decisions in label converting. Each technology has distinct advantages for different applications.

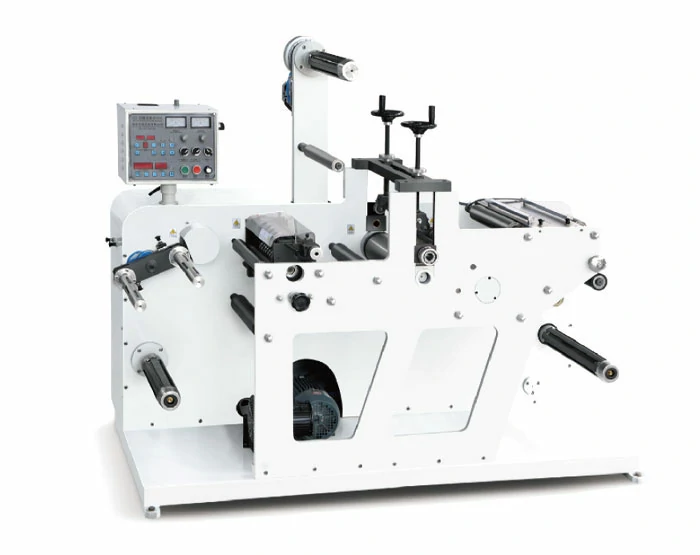

Rotary Die-Cutting – High Speed for Long Runs

Rotary die-cutting uses a cylindrical die that rotates against an anvil cylinder, cutting continuously as the material feeds through. This makes it ideal for high-volume, long-run production where speed and consistency are critical. Rotary die cutters are available in standard widths of 320mm, 450mm, and 570mm. The unwinding diameter can be specified as 600mm or 1000mm, depending on the model.

Flatbed Die-Cutting – Versatility for Short Runs and Complex Shapes

Flatbed die-cutting uses a flat die that presses down onto the material. This technology offers greater flexibility for short runs, complex shapes, and frequent job changes. Flatbed die cutters are available in 320mm and 420mm widths, with die-cutting ranges of 300×300mm and 400×400mm. They can also accommodate optional functions like laminating, hot stamping, and sheet cutting.

High-Speed Flatbed – The Best of Both Worlds

For applications requiring the versatility of flatbed cutting with higher throughput, high-speed flatbed die cutters deliver speeds up to 450 times per minute. Available in 350mm and 450mm widths, these machines offer a balance of flexibility and productivity.

450 Times/Min, ±0.10mm, and 320-570mm Width – The Numbers That Define Performance

The specifications of a label die-cutting machine determine its suitability for your production requirements. Key metrics include speed, accuracy, and width capacity.

Speed – 450 Times Per Minute

High-speed flatbed die cutters can achieve speeds of 450 times per minute. At this rate, a single machine can produce tens of thousands of labels per hour — enough to keep pace with high-speed printing presses.

Accuracy – ±0.10mm Registration

Paper guide accuracy is controlled at ±0.10mm. This level of precision ensures that every label is cut to exact specifications, maintaining consistent quality across the entire run. The servo-PLC control system provides high registration accuracy, particularly important for short-run custom converting.

Width Options – 320mm to 570mm

Rotary die cutters are available in 320mm, 450mm, and 570mm widths. Flatbed die cutters come in 320mm and 420mm widths, with high-speed flatbed models available in 350mm and 450mm. The choice of width depends on your maximum label size and press compatibility.

Servo-Driven Precision and ±0.10mm Registration – The Technology Behind Every Cut

Modern label die-cutting machines rely on advanced control systems to maintain precision at high speeds. The HSDM-350/450 intermittent rotary die cutter features servo-PLC control for high registration accuracy. Each unit is driven by a servo motor, which provides a guarantee of high precision register even during high-speed operation. The plate roller is pillow-mounted with high-precision gears, enabling easy and quick operation. An advanced control system ensures perfect printing and minimized losses. The machine is equipped with a water-cooling device for the printing carrier rollers, so that the printing of thin film materials will not be subject to UV curing.

Servo Motors for Independent Control

Each unit is driven by its own servo motor, providing independent speed and tension control. This is particularly valuable when running substrates with different stretch characteristics — you can fine-tune each station to match the specific material, preventing misregistration and waste.

Photocell Tracking for Accurate Monitoring

Digital label die-cutting machines are equipped with photocell tracking in the unwinding section, ensuring accurate monitoring of the material feed. This optical registration ensures that cuts are made at the correct position relative to the printed design.

Modular Flexo, Die-Cutting, and Rewinding Units – A System That Adapts to Your Needs

The label die-cutting machine differentiates modularly between flexo, die-cutting, unwinding, and rewinding units, which greatly improves productivity and precision. This modular design allows you to configure the machine to match your specific production requirements.

Optional Functions for Added Capability

Flatbed die-cutting machines can be equipped with laminating, hot stamping, and sheet cutting functions. Rotary die cutters can also include cutting in sheet and laminating options. High-speed die cutters support laminating, hot foil stamping, and sheet cutting. These optional functions allow you to expand your capability without purchasing additional equipment.

Integration with Flexo Printing

The machine can be integrated with flexo printing units for seamless printing and die-cutting in one continuous line. This integration eliminates the need for separate printing and finishing equipment, reducing floor space and handling.

Key Specifications at a Glance

What Label Converters Ask About Die-Cutting Equipment

What is the difference between rotary and flatbed die-cutting?
Rotary die-cutting uses a cylindrical die that rotates continuously, making it ideal for high-volume, long-run production. Flatbed die-cutting uses a flat die that presses down, offering greater flexibility for short runs, complex shapes, and frequent job changes.

What width options are available?
Rotary die cutters are available in 320mm, 450mm, and 570mm widths. Flatbed die cutters come in 320mm and 420mm widths, with die-cutting ranges of 300×300mm and 400×400mm. High-speed flatbed models are available in 350mm and 450mm widths.

What is the maximum speed?
High-speed flatbed die cutters can achieve speeds of 450 times per minute.

What is the registration accuracy?
Paper guide accuracy is controlled at ±0.10mm.

What optional functions are available?
Optional functions include laminating, hot stamping, sheet cutting, and integration with flexo printing units.

Choose a Die-Cutting System That Matches Your Label Types and Volume Targets

Selecting a label die-cutting machine comes down to three factors: technology (rotary for high volume, flatbed for flexibility), width (match your label size), and optional functions (match your finishing requirements). Contact Hongsheng Machinery for a customized solution → —their team can help you select the right die-cutting configuration for your specific label production needs.

Hongsheng Machinery manufactures a range of label die-cutting equipment, including rotary die cutters (HSD-320/450, HSQ-320/450), flatbed die cutters (HSM-320/420, HSM-320-420-H), and high-speed flatbed die cutters (HSMQ-350/450). The machines feature servo-PLC control, ±0.10mm registration accuracy, and modular design for integration with flexo printing and optional finishing functions. Applications include self-adhesive labels, thermal paper, plastic films, and food labeling. Hongsheng Machinery provides comprehensive technical support and after-sales service. Connect with Hongsheng Machinery to discuss your label types, width requirements, and production volume targets.
