Automatic Rotary Die Cutting Machine
Automatic Rotary Die Cutting Machine

Automatic Rotary Die Cutting Machine

Model:

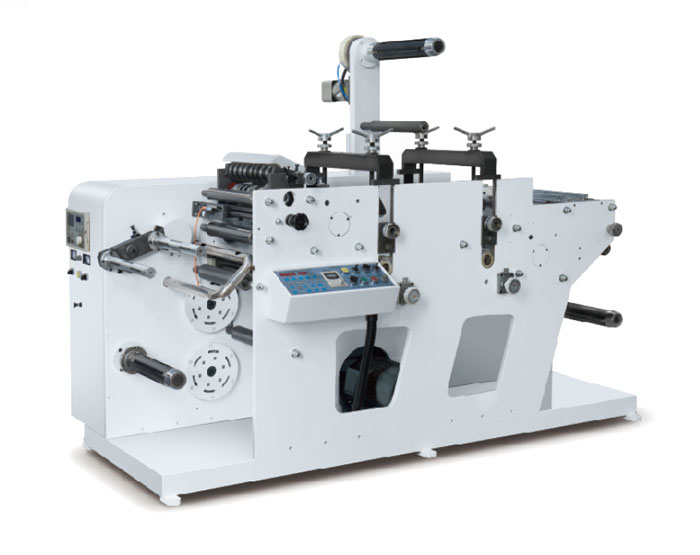

HSD-320G Slitting machine with rotary die-cutting function is a new product , it equipped with high accurate rotary die-cutting system. This machine is suitable for blank adhesive labels . Die-cutting , laminating (option), slitting can be finished in one process .

Online Inquiry
PDF Download
Product Description
Technical Parameters
Recommended Products
Product
Description

lt has the function of automatic meter counting, automatic stop, web guiding by photocell. The machine has the characteristic of compact structure, fast speed, high efficiencyeasy operation, accurate slitting and steady running etc.

Technical
Parameters
Model HSD-370 HSD-450 HSD-570
Slitting speed 120m/min 120m/min 100m/min
Die cutting speed 100m/min 100m/min 80m/min
Die-cutting repeat length 177-476mm56T-150T 177-476mm 56T-150T 177-476mm 56T-150T
Max.web width 350mm 450mm 570mm
Max.unwinding dia 550mm 550mm 1000mm
Max.rewinding dia 480mm 480mm 480mm
Precision of Slitting +0.10mm +0.10mm +0.10mm
Main power capacity 3kw 4kw 4.5kw
Voltage 220V/AC1Phase 220V/AC1Phase 220V/AC1Phase
Machine Weight 800kg 900kg 1100kg
Overall dimension (Lx W x H） 1920×1170×1750mm 1920×1300×1750mm 24000×1420×1750mm
