HSMQ-350 High Speed Flatbed Die Cutter
HSMQ-350 High Speed Flatbed Die Cutter

High speed Label Die Cutting Machine

Model: HSMQ-350

High Speed Label Die Cutting Machine, powered by servo control system & Schneider low-voltage electricals, delivers 120m/min high speed, ±0.10mm precision, 350mm max web width—highly automated, stable & tension-controlled for label production, supporting optional die cutting, sheet cutting & laminating.

  • Die Cutting Speed: 130m/min
  • Die Cutting Precision: ±0.10mm
  • Max. Die Cutting Width: 320mm
  • Max. Die Cutting Length: 350mm
  • Max. Rewinding Diameter: 700mm
  • Max. Unwinding Diameter: 700mm
Online Inquiry
PDF Download
Product Description
Technical Parameters
Product Display
Recommended Products
Product
Description

Precise Control & Stable Operation: Equipped with Inovance control, Leadmotion intelligent tech, and servo drive, it delivers smooth feeding, stable tension, and ±0.10mm accuracy for consistent, high-precision label production.



High-Speed Efficiency: With speeds up to 130m/min (450 times/min), it greatly boosts output, reduces manual intervention, and shortens the overall production cycle.



Versatile Functions & Wide Compatibility: Supports die cutting, hot stamping, sheet cutting, and film lamination, with a 350mm web width, 320×350mm die-cut size, and 700mm unwind/rewind capacity for various label materials and applications.

Technical
Parameters
Model HSMQ-350
Control System Inovance control system
Die Cutting Speed 130m/min(450times/min)
MaxWeb Width 350mm
Max. Unwinding Diameter 700mm
Max. Rewinding Diameter 700mm
Die Cutting Precision ±0.10mm
Max. Die Cutting Width 320mm
Max. Die Cutting Length 350mm
Total Power 20kw
Power Supply 380v 3p
Weight 2000kg
Dimension (L×W): 3500×1500
Floor Area Df Machine (L×W):(3500+1000+1000)×(1500+1500+1000)
Product Display

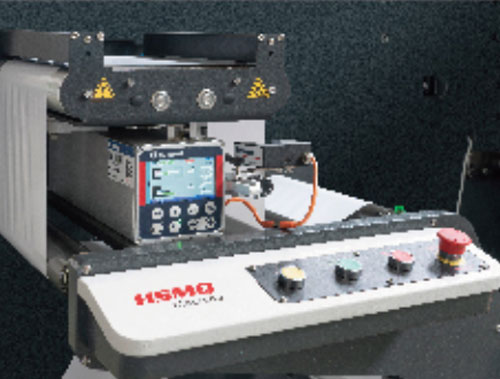

Web Guide

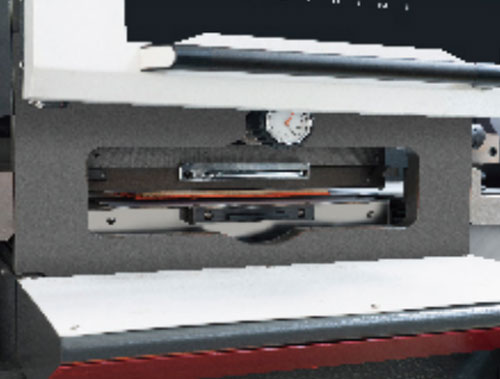

Flat bed die cutting station

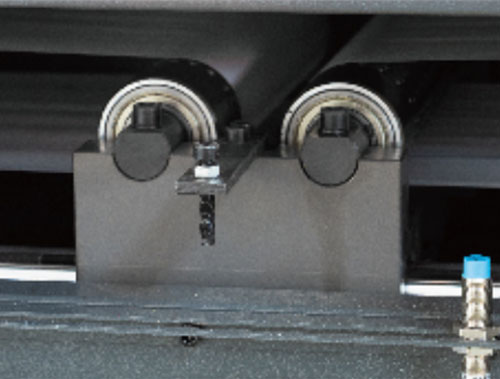

Dancing Roller

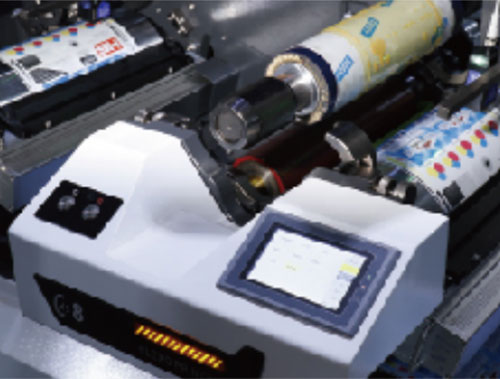

Printing Unit

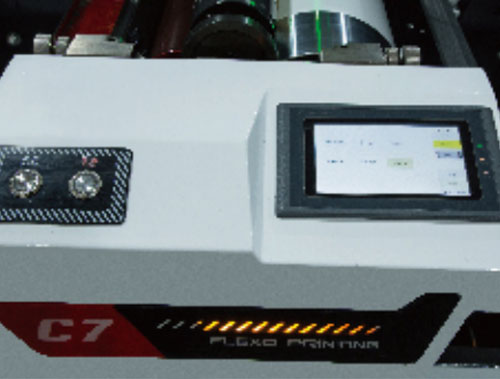

Printing Unit

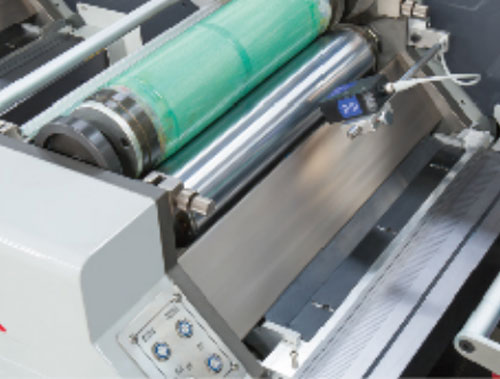

Printing Unit
