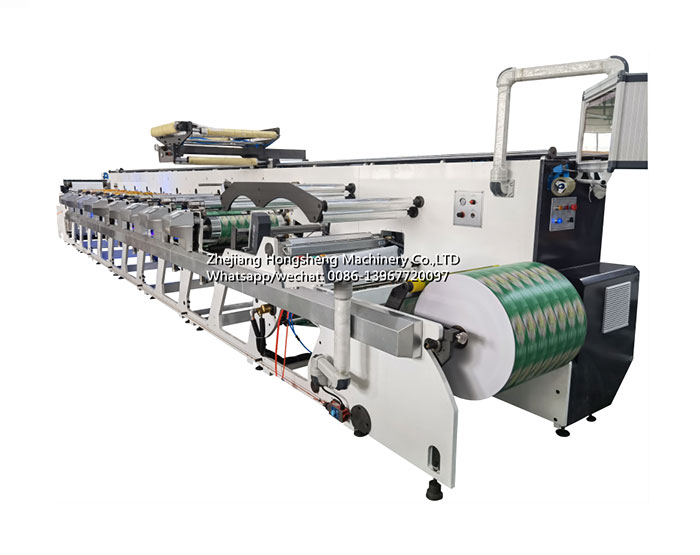

Label Flexo Printing Presses

Model: SFLEX-650-9C

SFLEX-650-9C label flexographic printing machine servo motors driving each printing station, using the German Rexroth system, with 9 colour printing heads.

Max. printing speed: 200m/min.
Max. printing width: 650 mm
Max. Material width: 660 mm
Max. repeat length: 254-609.6 mm
8 Colors Printing
German Rexroth system

Product Description

Technical Parameters

Product Display

Recommended Products

Product
Description

Efficient drive system: 3 servo motors are used to independently drive each printing station, and the German Rexroth system is used to ensure stable and accurate printing process, and efficient and energy-saving power transmission.

High-speed multi-color printing capability: The maximum printing speed reaches 200m/min, equipped with 9-color printing heads, which can complete multi-color label printing at one time, greatly improving batch production efficiency.

Precise registration control technology: The horizontal registration is precisely adjusted by motor drive, and the vertical registration adopts a 360° servo drive system and supports automatic pre-registration function.

Technical
Parameters

Model	SFLEX-650
Max. printing speed	200m/min.
Max . printing width	650 mm
Max. Material width	660 mm
Max .unwind diameter	1050 mm
Max .rewind diameter	1050 mm
Max. repeat length	254-609.6 mm
Loading method	sleeve
Horizontal overprint adjustment	motor drive
Longitudinal overprint control	360°servo drive
Preliminary overprint	Automatic
Lubrication way	Manual

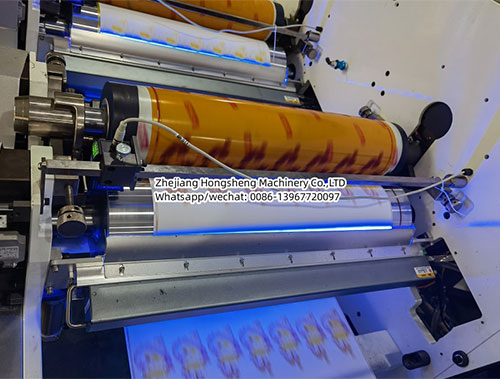

Product Display

Recommended Products

Inline Flexo Printing Presses

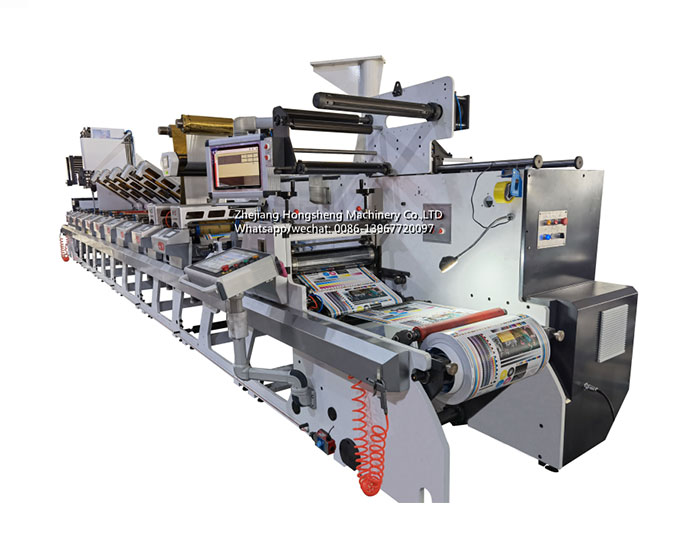

SFLEX-530 In-line flexo label printing machine, Double servo motors for each printing station, Rexroth system from Germany,width of 530mm, auto registration.
