SFLEX-530 In-line Flexo Label Printing Machine
SFLEX-530 In-line Flexo Label Printing Machine

Inline Flexo Printing Presses

Model: SFLEX-530

Inline Flexo Printing Presses are high-productivity equipment designed specifically for label printing, while supporting multi-process inline applications and being able to efficiently handle a variety of substrates.

  • Max. printing speed: 200m/min.
  • Max. printing width: 530 mm
  • Max. Material width: 540 mm
  • Max. rewind diameter: 1050 mm
  • Fully automatic registration control
  • 360º adjustable printing unit
Online Inquiry
PDF Download
Product Description
Technical Parameters
Product Display
Recommended Products
Product
Description

Efficient 3 servo drive system: Each printing station is equipped with dual servo motors, combined with the German Rexroth system, to achieve precise power output and stable operation.



Fully automatic registration control: Equipped with Auto Registration technology, the longitudinal registration is dynamically adjusted through 360° servo drive to ensure the consistency of image and text position during multi-color printing.



Wide format and flexible adaptability: The maximum printing width is 530mm, the material width is 540mm, and the repeat length range is 254-609.6mm, which can flexibly adapt to different label size requirements.

Technical
Parameters

Model

SFLEX-530

Max. printing speed

200m/min.

Max . printing width

530 mm

Max. Material width

540 mm

Max .unwind diameter

1050 mm

Max .rewind diameter

1050 mm

Max. exhaust diameter

900 mm

Max. repeat length

254-609.6 mm

Loading method

sleeve

Horizontal overprint adjustment

motor drive

Longitudinal overprint control

360°servo drive

Preliminary overprint

Automatic

Lubrication way

Manual

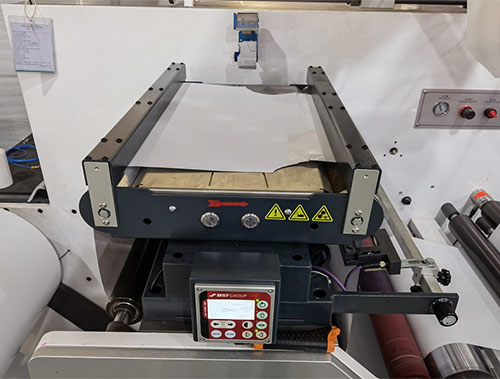

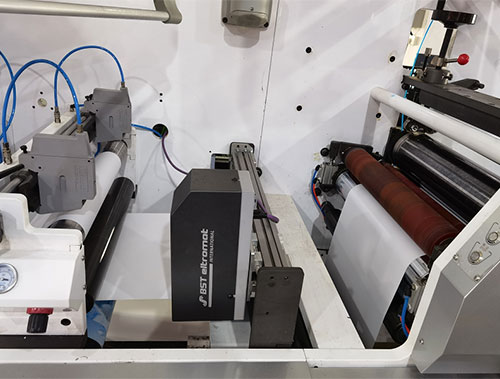

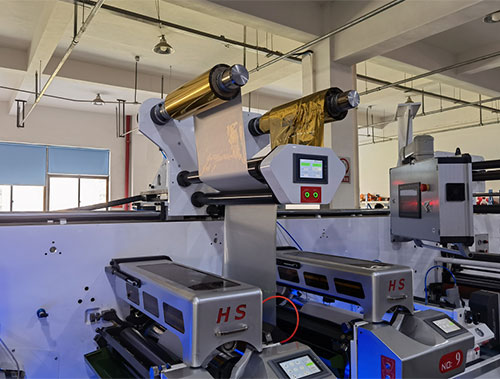

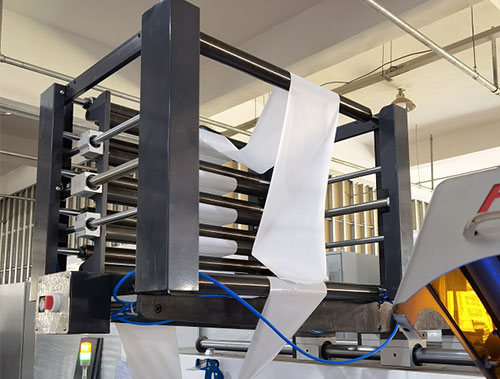

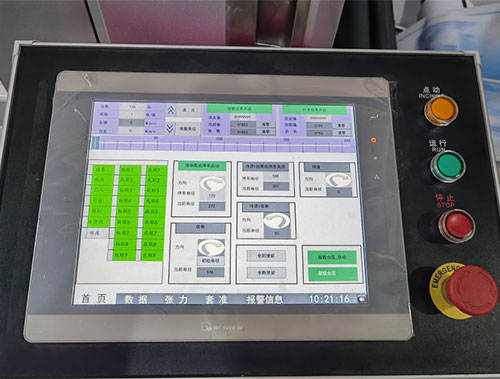

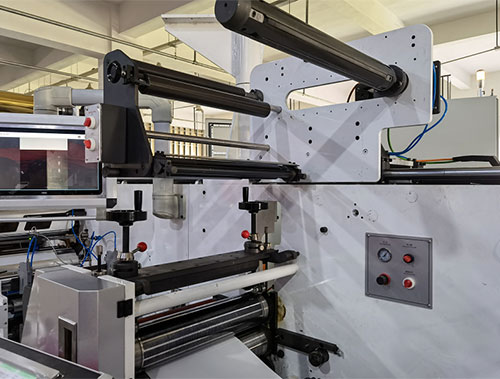

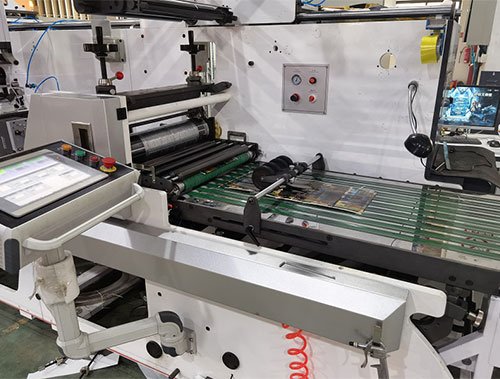

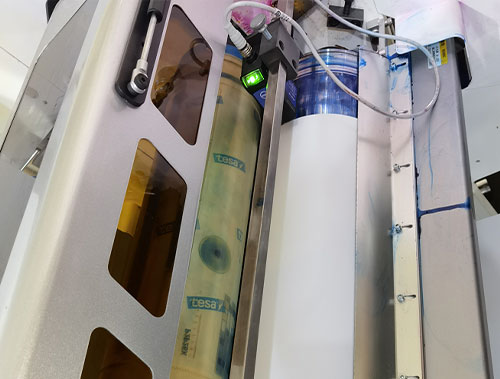

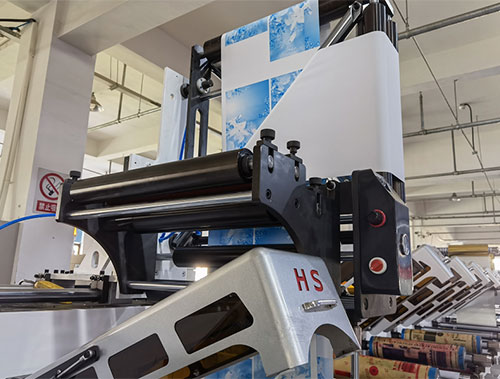

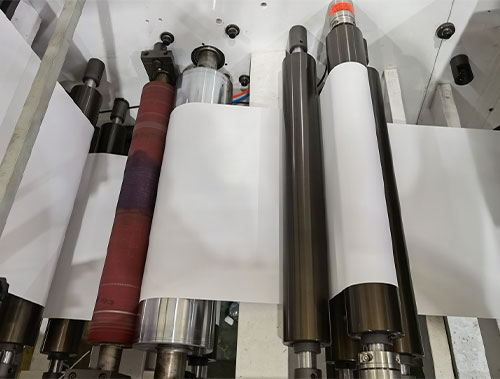

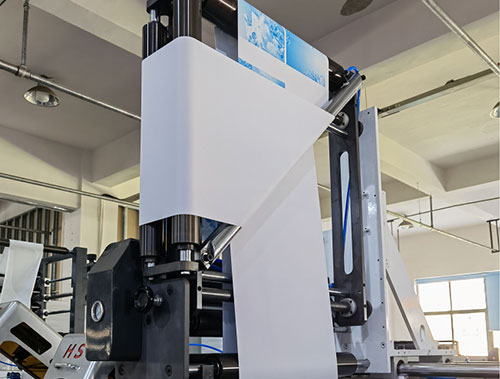

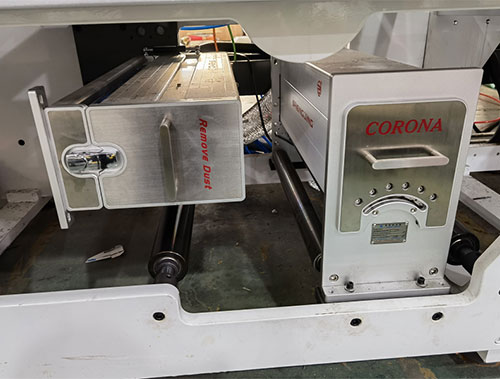

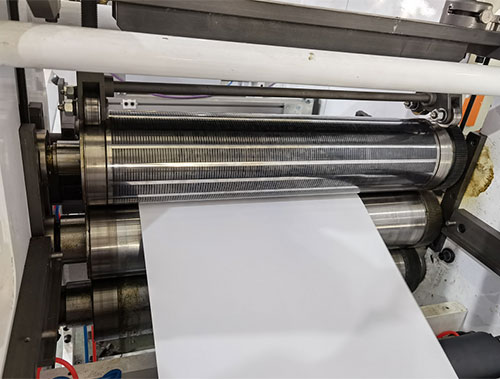

Product Display
