You're running a label shop. Your customers want shrink sleeves for bottles, peel-and-stick labels for food jars, and aluminum foil labels for premium packaging. Each job uses a different material. Each requires different drying, different tension, different registration accuracy. You can take those jobs—or watch your competitor take them instead.
A label flexo printing machine is the difference between turning away work and growing your business. The Hongsheng SFLEX, EFLEX, and CFLEX series are built to handle the range of materials and applications that modern label shops face every day. This guide breaks down what these machines can do, how to choose between single and double servo configurations, and which optional features actually pay for themselves. Whether you're printing shrink films, paper labels, or aluminum foil, the right machine turns complex jobs into profitable runs.
The label market is diversifying. Customers want more than simple paper labels. They want shrink sleeves that conform to curved bottles. They want foil labels that catch light on the shelf. They want film labels that survive freezer temperatures. A machine that can't handle these materials is a machine that limits your revenue.
Shrink films are one of the fastest-growing segments in label printing. Bottled beverages, cosmetics, and household products all use shrink sleeves. The double servo motor configuration on Hongsheng's SFLEX series can print films as thin as 12 microns. That's thin enough for high-shrink applications where every micron counts. Single servo configurations handle standard films down to 38 microns—still suitable for most label stock, but not for ultra-thin shrink materials.
If you're printing shrink sleeves regularly, the double servo option isn't a luxury—it's a requirement.
Paper labels remain the backbone of the industry. Food packaging, beverage labels, and shipping labels all run on paper. The EFLEX and CFLEX series handle paper and sticker stock with consistent registration and clean print quality. The 360-degree registration adjustment ensures that every label is perfectly aligned, even on long runs.
Aluminum foil labels are common in premium food packaging and pharmaceutical products. They require careful handling and precise tension control. The modular design of Hongsheng machines—with separate unwinding, printing, and rewinding units—allows you to fine-tune tension for each material. Foil doesn't stretch like film, but it's prone to wrinkling if tension isn't controlled.
Hongsheng offers three main series, each with different servo configurations. The choice between single and double servo motors determines your material range and registration accuracy.
The SFLEX series uses double servo motors for each printing station. Two motors per unit means more precise tension control and better registration on thin, stretchy materials. If you're printing shrink films, BOPP, or any film thinner than 38 microns, double servo is the right choice. The system is entirely servo-controlled, ensuring high precision registration even at high speeds.

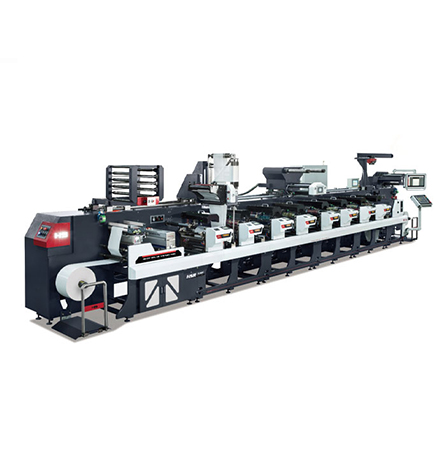

The EFLEX and CFLEX series use single servo motors per station. These machines handle films, stickers, papers, and aluminum—everything except ultra-thin shrink films. They offer stable registration, fast speeds, and lower cost than double servo models. For a label shop that runs mostly paper and standard films, single servo provides excellent value.
The number of colors you need determines which machine configuration to choose. Hongsheng machines are available from 1 to 9 colors. The CFLEX-340-9C-2D runs 9 colors with Yaskawa servo control. More colors mean more capacity for complex jobs—and higher margins on each run.
Below is a quick reference table for the main series and their capabilities:
| Series | Servo Type | Min Thickness | Best For |
|---|---|---|---|
| SFLEX-370/450/530/660 | Double servo per station | 12 microns | Shrink films, BOPP, thin films |
| EFLEX-370/450/530 | Single servo per station | 38 microns | Films, stickers, paper, aluminum |
| CFLEX-370/450/530 | Single servo per station | 38 microns | Labels, papers, plastic films |
| HSH Series | Single servo per station | 38 microns | High-speed label printing, 8+ colors |
Beyond servo configuration and color count, several optional features determine what a label flexo printing machine can actually do for your business.
Water-based inks need heat to dry. UV inks need UV light to cure. Hongsheng machines offer both options. The unit-type HSH-450 comes with IR dryers on each station, with UV dryers available as an option. For film printing, the water-cooling device on carrier rollers prevents thin materials from distorting under UV curing heat.
If you're printing on heat-sensitive films, water-cooled carrier rollers are a non-negotiable feature. Without them, the film stretches or wrinkles as it passes through the UV curing unit.
A printing press that stops at printing leaves money on the table. Hongsheng machines support inline die-cutting, slitting, inspection, and folding. Optional features include cold foil stamping, multi-layer printing, varnishing, hot air drying, laminating, and screen printing.
Cold foil stamping on a flexo press is a game-changer for premium label work. Instead of running labels through a separate stamping machine, you apply foil inline during the printing pass. The result: faster turnaround and higher margins on foil jobs.
Registration drift is the enemy of profitable label printing. Every misregistered label is waste. Hongsheng machines use advanced control systems for perfect printing and minimized losses. The 360-degree registration adjustment allows on-the-fly corrections without stopping the press.
For variable data printing—barcodes, serial numbers, QR codes—precise registration is even more critical. The servo control system ensures that every variable element lands exactly where it should.
Q: What materials can a label flexo printing machine handle?
A: The double servo SFLEX series handles all kinds of films—PP, PVC, BOPP, shrink films—plus stickers, papers, aluminum, and more. Single servo models handle everything except shrink film. If your work includes shrink sleeves, choose double servo.
Q: What's the thinnest material I can print?
A: Double servo machines print down to 12 microns. Single servo machines are rated for 38 microns and above. The difference matters: 12-micron film is roughly one-third the thickness of standard label stock. That's the difference between printing shrink sleeves and not printing shrink sleeves.
Q: What widths are available?
A: Standard sizes are 340mm, 370mm, 420mm, 450mm, 530mm, and 650mm. The 340mm and 370mm sizes are common for narrow-web label work. The 530mm and 650mm sizes handle larger runs and wider labels. Choose the width that matches your typical job sizes—and leave room for the jobs you want to win.
Hongsheng Machinery has been manufacturing label flexo printing machines for the B2B market. The SFLEX, EFLEX, and CFLEX series are built for label shops that need versatility, precision, and uptime.
The modular unit concept separates flexo printing, die-cutting, unwinding, and rewinding into independent units. This design improves productivity and simplifies maintenance. If a unit needs service, you don't take the whole machine offline. The pillow-mounted plate rollers with high-precision gears make plate changes quick and easy.
For label shop owners, the decision isn't just about printing today's jobs. It's about taking tomorrow's jobs—the shrink sleeves, the foil labels, the complex multi-color runs that competitors can't handle. A Hongsheng label flexo printing machine with the right configuration and options turns those jobs into revenue.
Before you commit to a machine, run your actual materials through a test. Send your film, your paper, your foil—and run a job on the machine you're considering. That's the only way to know if it'll perform in your shop.
Ready to find the right label flexo printing machine for your shop? Contact Hongsheng Machinery for a quote or to discuss your specific material and production requirements. Share your typical label materials, target width, and color count—their team can recommend the right series and configuration for your business.
