Horizontal Label Flexo Printing Machine
Horizontal Label Flexo Printing Machine

Horizontal Label Flexo Printing Machine

Model: EFLEX-370/450/530

Flexographic label printing machine: double servo motors for each printing station, with high precision of registration. Be suitable for films, stickers, papers.

Online Inquiry
Product
Description

Each unit of the flexographic label printing machine is equipped with an independent servo motor. The electronic control allows for horizontal and vertical registration adjustment, which can be operated independently at each printing unit as well as from the main control panel, providing great convenience and efficiency. The ink distribution system has been optimized and the operating system simplified. This machine is suitable for printing large, medium, and small batches of label products, making it the optimal choice for high-end label production companies.

Technical
Parameters
Model EFLEX-370 EFLEX-450
Maxmechanical speed 200m/min 200m/min
Max Printing width 360mm 450mm
Max.web width 370mm 460mm
Max.unwind diameter 1050mm 1050mm
Max.waste diameter 900mm 900mm
Max.repeat length 178mm-610mm (56T-192T) 178mm-610mm (56T-192T)
Loading method Flower Flower
Horizontal overprint adjustment Motor driven Motor driven
Vertical overprint control Servo driven Servo driven
Color Pre -register Semi-Automatic Semi-Automatic
Power supply 380V/AC±10% 380V/AC±10%
Fast changing ink system Ink swift change Ink swift change
Hot air drying Optional Optional
Cold foil (movable) Optional Optional
Turn bar (movable) Standard Standard
Overall dimensions (LxWxH) 11m×1.5m×2.5m 11m×1.68m×2.5m
Product Display

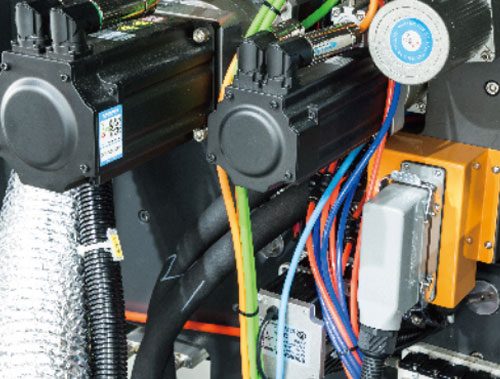

Duo Servo Control
Chilling Roller

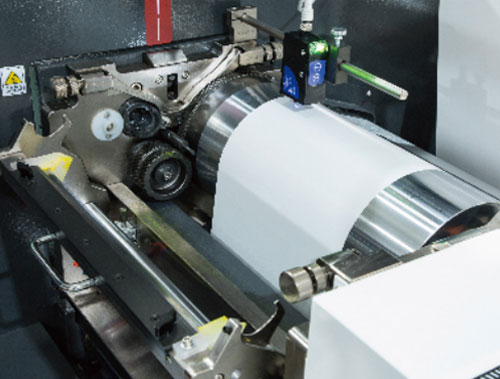

Quick change Blade

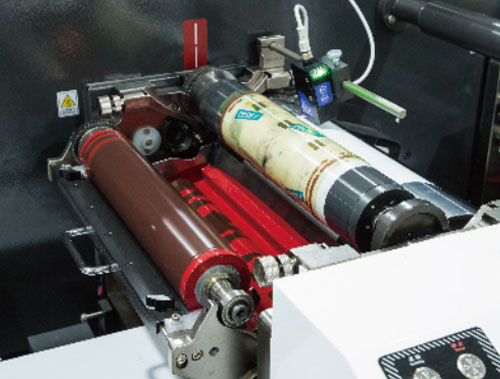

Printing Unit

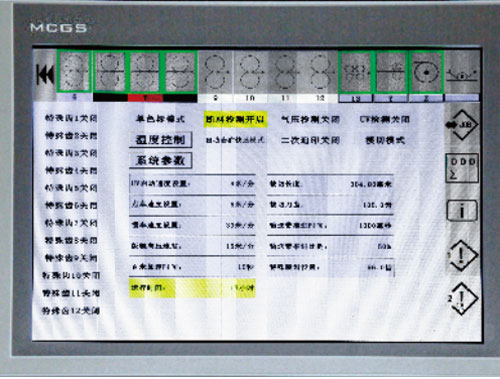

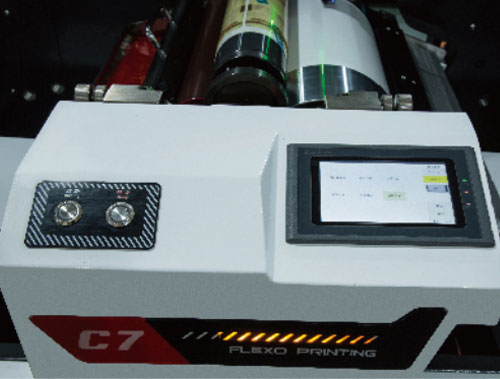

HMI

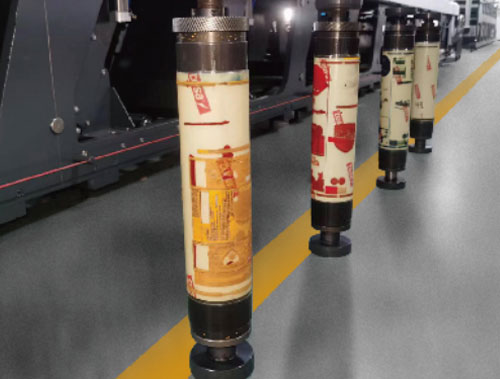

Printing Cylinder
