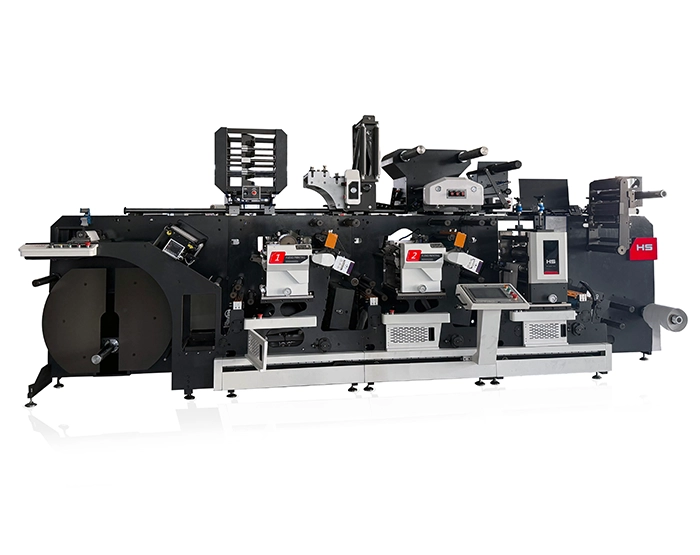

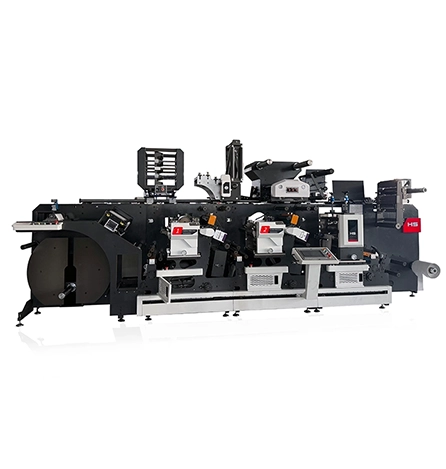

You're standing in front of a label printing press, and the difference between a productive day and a frustrating one comes down to how intuitive the machine feels. A label flexo printing machine that forces you to wrestle with settings, guess at registration, or constantly adjust tension is a machine that slows you down. The full rotary/semi-rotary flexo printing machine with die cutting was designed with that principle in mind: dual-mode operation that lets you choose between high-speed production and job flexibility, UV drying that cures instantly without guesswork, and a touchscreen interface that puts settings at your fingertips. This article walks through what makes this machine genuinely operator-friendly—from the intermittent printing capability that reduces waste on short runs to the integrated die cutting that eliminates a separate finishing step.
Q: What's the advantage of having both full rotary and semi-rotary modes?
A: Full rotary mode runs at high speed for long production runs where you're printing the same label over and over. Semi-rotary (intermittent) mode stops and starts the printing cylinder, which is perfect for short runs and job changes. The machine gives you both in one press—you're not choosing one at the expense of the other.
Q: How does the machine handle drying?
A: The machine uses a UV drying system with air cooling. The UV lamp cures inks instantly, so you don't have to wait for drying before the next operation. The air cooling keeps the substrate from overheating, which is critical for heat-sensitive materials.
The defining feature of the machine is its ability to operate in both full rotary and semi-rotary modes. This isn't a compromise—it's a deliberate design that gives you flexibility without requiring two separate presses.
In full rotary mode, the printing cylinder rotates continuously, matching the speed of the web. This mode is designed for long production runs where you're printing the same label design in high volume. The press runs at maximum speed, and the register stays locked.
In semi-rotary mode, the printing cylinder stops and starts to match the label repeat length. This intermittent motion is ideal for short runs, frequent job changes, and printing variable data. Instead of wasting material during setup and changeovers, the machine prints exactly what you need, when you need it.
Ink drying is one of the most common sources of slowdowns in label printing. The machine uses a UV drying system with air cooling that solves both the drying speed and the heat management problems.
UV ink cures almost instantly when exposed to the UV lamp. You don't have to wait for solvent evaporation or worry about ink smearing during finishing operations. Labels go from the printing unit to the die-cutting unit fully cured and ready to handle.
Heat-sensitive label materials—like thin films and heat-sensitive papers—can warp or shrink under high temperatures. The air cooling system keeps the substrate temperature down, so you get the benefit of UV curing without the downside of heat damage.
The machine is equipped with a Japanese touchscreen that makes operation intuitive and precise. This isn't a control system that requires a degree to operate—it's designed for operators who need to get the job done.
The touchscreen interface allows operators to adjust printing parameters quickly and precisely. Instead of hunting through multiple panels or using trial and error, you can see the settings and adjust them in real time.
The machine uses Japan SMC cylinders and Dongli pneumatic joints for precise control of registration. These components work with the touchscreen interface to keep colors aligned across the full production run—no drift, no waste.
The machine doesn't stop at printing. It includes die cutting, waste rewinding, and sheeting in a single integrated workflow.
Instead of printing labels and then moving them to a separate die-cutting machine, the press handles both operations in one pass. Labels are printed, die cut, stripped of waste, and rewound—ready for the customer without additional finishing steps.
The integrated waste rewinding unit collects the matrix waste as it's stripped from the labels. This eliminates loose waste on the production floor and simplifies cleanup between jobs.
| Parameter | Specification |
|---|---|
| Printing Color | 1-8 colors |
| Printing Width | 300-500mm |
| Max. Printing Speed | 300m/min (full rotary) |
| Sleeve Thickness | 3mm |
| UV Drying | UV lamp + air cooling |
| Control System | Japanese touchscreen |
| Main Components | Japan SMC cylinders, Dongli pneumatic joints |
| Printing Modes | Full rotary & semi-rotary (intermittent) |
| Finishing | Die cutting, waste rewinding, sheeting |
The full rotary/semi-rotary flexo printing machine is designed for self-adhesive label converters who need both speed and flexibility:
The press is specifically designed for self-adhesive label production. The combination of UV drying, precise register control, and integrated die cutting makes it well-suited for the demands of label converting.
With semi-rotary capability, the press is ideal for short-run label production and prototype development. You can print small quantities without wasting material on setup and changeover.
The intermittent printing capability makes the press suitable for variable data applications—serial numbers, barcodes, and other variable information that changes from label to label.
Q: What is the printing speed of the machine?
A: The machine runs at a maximum speed of 300 meters per minute in full rotary mode.
Q: What is the printing width range?
A: The machine is available in 300-500mm printing widths.
Q: What colors can the machine print?
A: The press is available in 1-8 colors, depending on configuration.
Q: What materials can the machine handle?
A: The machine is designed for self-adhesive label materials, with the UV drying and air cooling system handling a range of films and papers.
Q: How does the machine handle die cutting?
A: The machine includes integrated die cutting, so labels are printed, cut, and stripped of waste in a single pass.
Q: What is the sleeve thickness?
A: The machine uses sleeves with a thickness of 3mm.
Q: What control system does the machine use?
A: The machine is equipped with a Japanese touchscreen for intuitive, precise operation.
A label flexo printing machine that simplifies production doesn't require complicated setup or constant operator attention. The full rotary/semi-rotary flexo printing machine from Hongsheng Machinery combines dual-mode operation, UV drying with air cooling, integrated die cutting, and a Japanese touchscreen control system—all in a press built for self-adhesive label production.
Whether you're running long production runs in full rotary mode or short-run jobs in semi-rotary mode, this press offers the flexibility and reliability that label converters need. With 1-8 color configurations and 300-500mm printing widths available, you can match the machine to your specific production requirements.
Contact Hongsheng Machinery for a quote or technical consultation → their team can help you select the right printing width, color configuration, and options for your specific label production needs. Get a label press that delivers simplicity without compromising on quality.
