Max. Printing Speed: 110 m/min
Paper Roll Width: 450 mm
Max. Printing Width: 440 mm
Max. Unwinding Diameter: 1000 mm

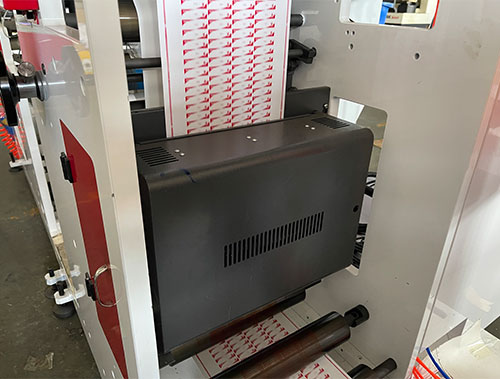

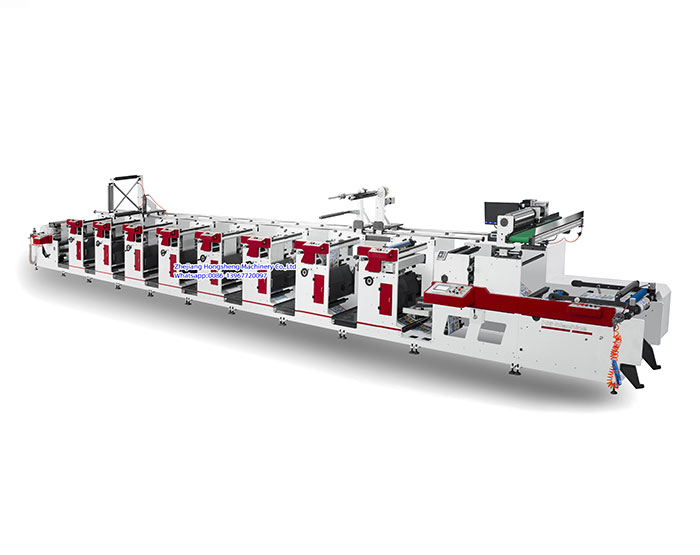

HSH-450-8C flexo label machine, Single servo motor with 8 colors, Each printing unit of the flexo printing machine has one IR dryer. UV dryer can be optional.
Efficient production capacity: The maximum printing speed of 110 m/min is matched with the 1000 mm unwinding diameter and rewinding， which reduces the frequency of roll changes and significantly improves continuous production efficiency.
High-precision printing performance: The color registration accuracy reaches ±0.1 mm and the paper guide accuracy is ±0.02 mm, ensuring the fine reproduction of complex patterns and meeting the needs of high-end label printing.

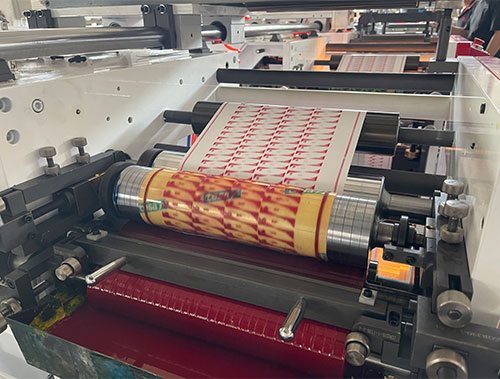

Flexible process adaptability: The 8-color printing unit is equipped with IR drying as standard (UV drying is optional), supports 177.8-368.3 mm repeated printing length and 1.7/1.14 mm flexographic plate thickness, and is compatible with multiple materials and ink processes.
|
Description |
Parameter |
|
Max. Printing Speed: |
110 m / min*² |
|
Paper Roll Width: |
450 mm |
|
Max. Printing Width: |
440 mm |
|
Repeat Printing Length: |
206 mm – 460 mm ( 65 T – 145 T ) *³ |
|

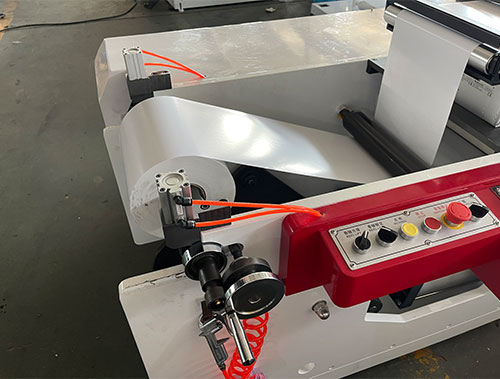

Max. Unwinding Diameter: |
1000 mm |
|
Max. Rewinding Diameter: |
1000 mm |
|
Precision of Chromatography: |
± 0.10 mm |
|

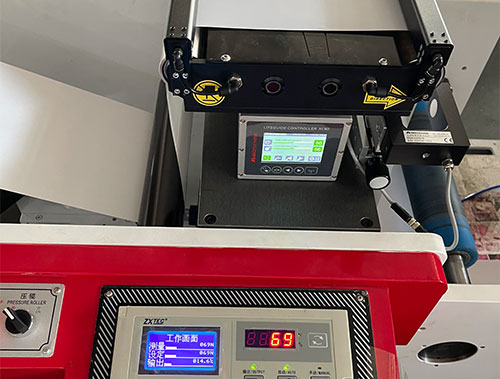

Precision of Web Guiding: |
± 0.02 mm |
|
Thickness of Flexo Plate: |
1.7 mm/1.14mm |
|
Thickness of Double-faced Adhesive Tape |
0.38 mm *⁴ |
|
Voltage: |
380 V (50 Hz, 3 phases) *⁵ |
|
Power of Single IR Dryer:: |
4.0 KW |
