SFLEX-370-10C Flexo Printers Printing
SFLEX-370-10C Flexo Printers Printing

High Speed Label Printing Machine

Model: SFLEX-370-10C

SFLEX-370-10C high-speed label printer is equipped with 3 servo motors and the German Rexroth system to achieve high-precision registration, making it an ideal choice for efficient label printing.

  • Max. printing speed: 200m/min.
  • Max . printing width: 350 mm
  • Max. Material width: 370 mm
  • Max .unwind diameter: 1050 mm
  • German Rexroth system
  • Preliminary overprint: Automatic

Online Inquiry
PDF Download
Product Description
Technical Parameters
Product Display
Recommended Products
Product
Description

High-precision registration technology: equipped with 3 servo motors and German Rexroth system, combined with 360° servo-driven longitudinal registration control and automatic pre-registration function.



Efficient production output: The maximum printing speed reaches 200 meters/minute, and with the 350 mm width of printing capacity, it can meet the needs of large-scale continuous production of labels.



Intelligent operation design: The sleeve-type plate loading and motor-driven lateral registration adjustment are adopted to reduce manual intervention, simplify the debugging process, and reduce the difficulty of operation and time cost.

Technical
Parameters

Model

SFLEX-370

Max. printing speed

200m/min.

Max . printing width

340 mm

Max. Material width

350 mm

Max .unwind diameter

1050 mm

Max .rewind diameter

1050 mm

Max. exhaust diameter

900 mm

Max. repeat length

254-609.6 mm

Loading method

sleeve

Horizontal overprint adjustment

motor drive

Longitudinal overprint control

360°servo drive

Preliminary overprint

Automatic

Lubrication way

Manual

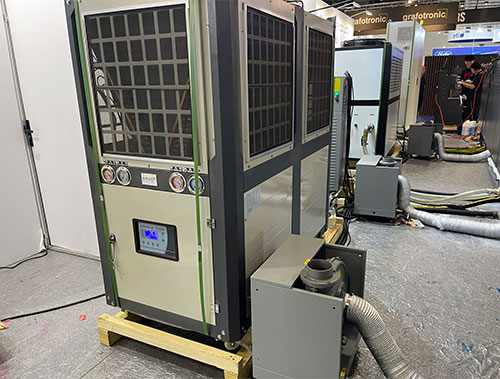

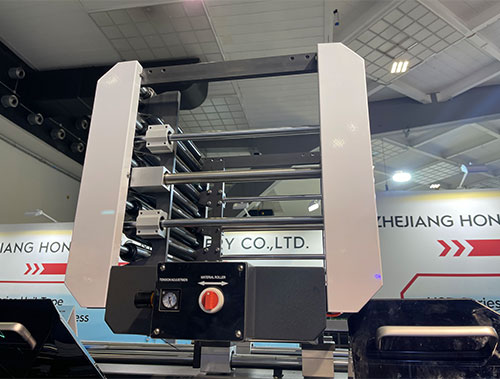

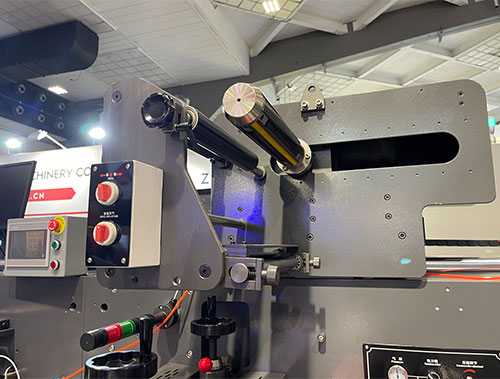

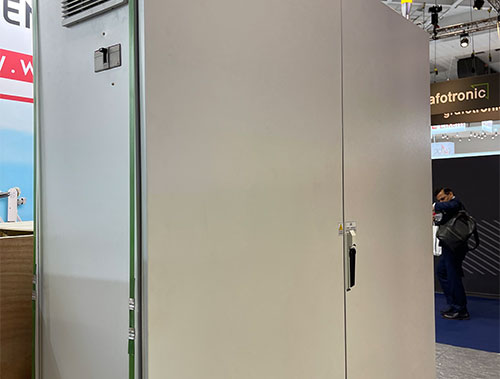

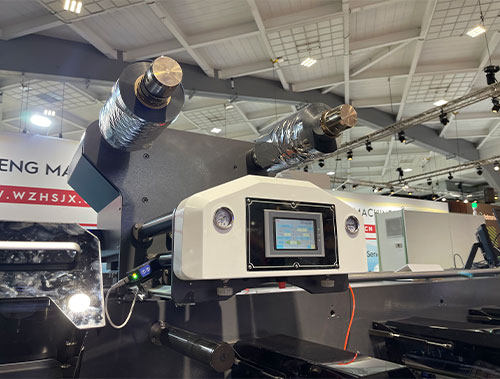

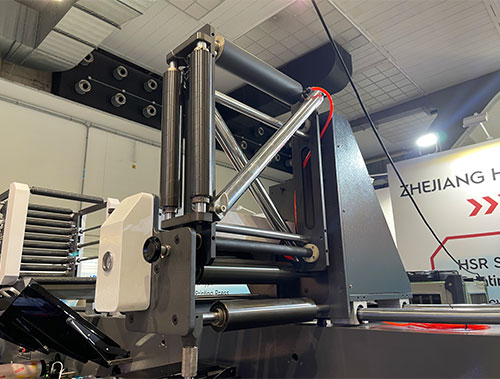

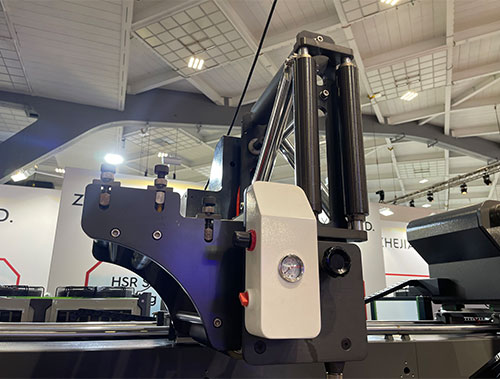

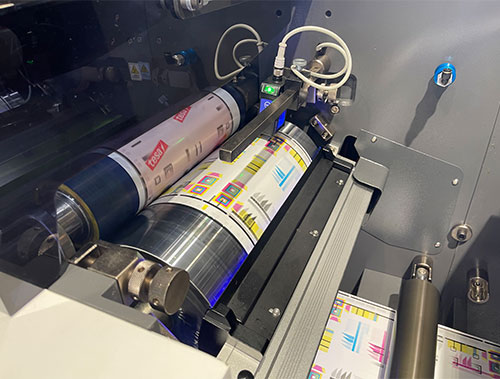

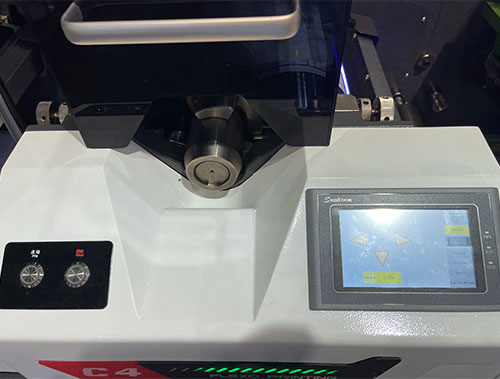

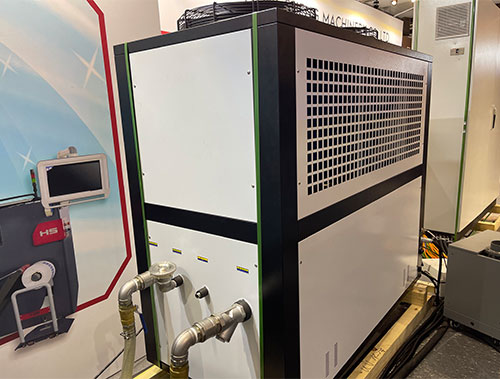

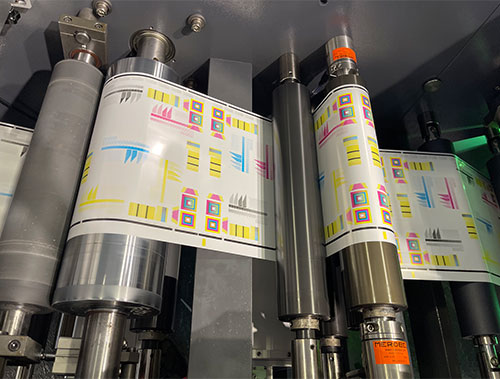

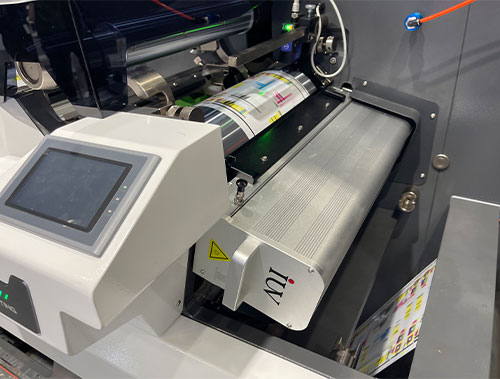

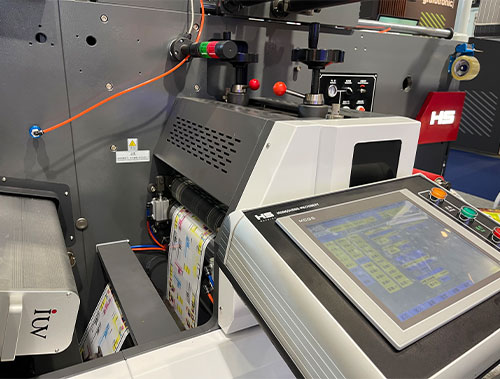

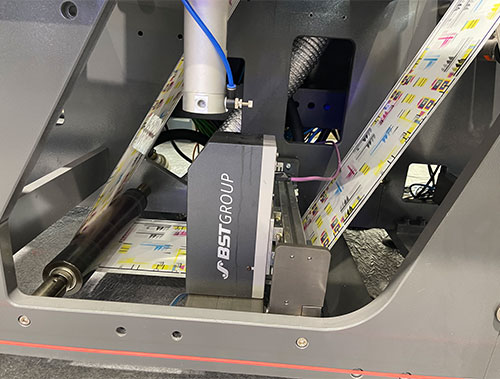

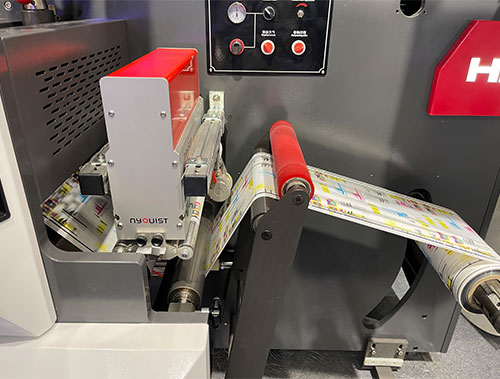

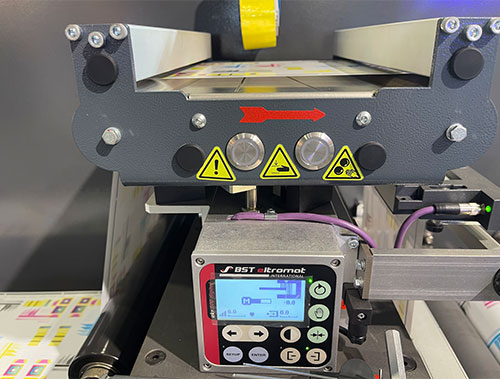

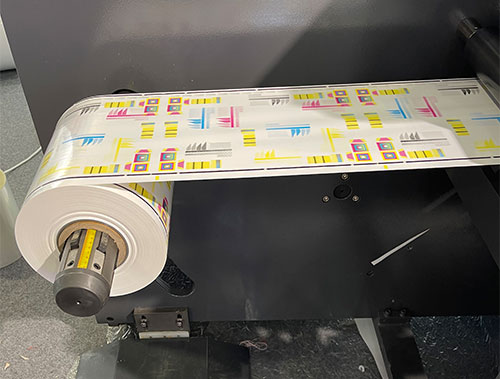

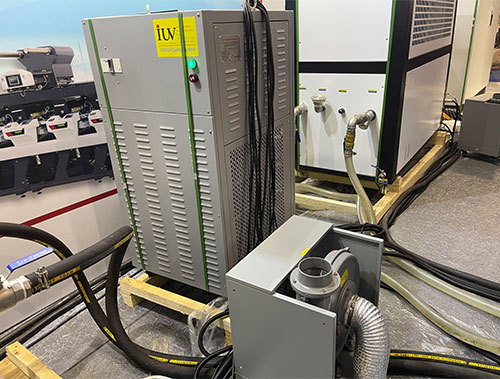

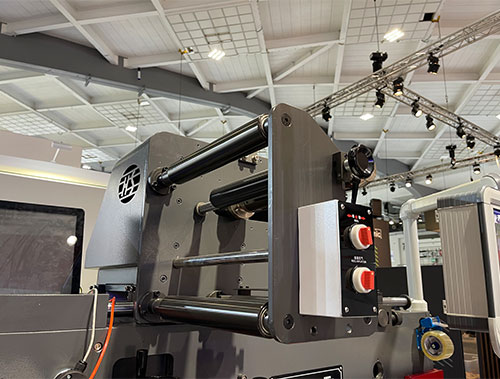

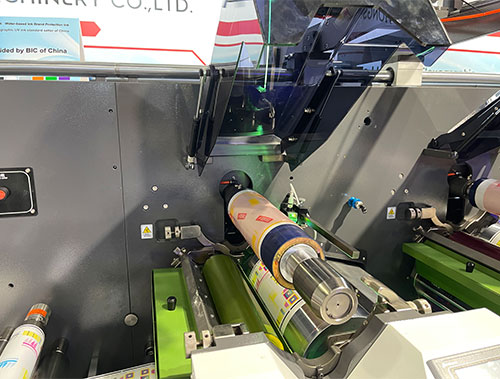

Product Display
Recommended Products
HSH-450-8C Printer Flexo
Unit Type Flexo Printing Machine
HSH-450 Unit Type Flexo Printing Machine, Single servo motor with 8 colors,Each printing unit of the flexo printing machine has one IR dryer. UV dryer can be optional.
SFLEX-530 In-line Flexo Label Printing Machine
Inline Flexo Printing Presses
SFLEX-530 In-line flexo label printing machine, Double servo motors for each printing station, Rexroth system from Germany,width of 530mm, auto registration.
SFLEX-650-9C Flexo Printing Machines Label
Label Flexo Printing Presses
SFLEX-650 9C Digital Label Flexo Printing Presses with a printing width of 650mm and 9 colour printing stations.
Latest News

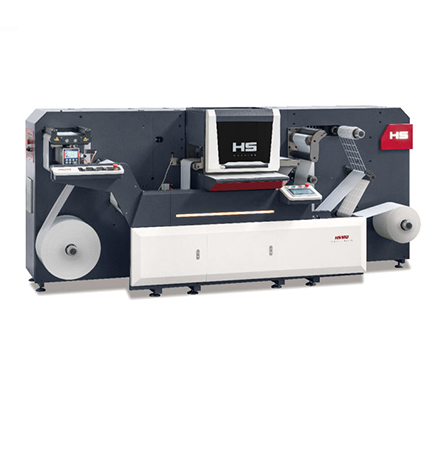

Where does the ±0.10mm paper guide tolerance on a label die cutting machine actually show up on a roll of 10,000 finished labels?
