HSQ-320 Label Slitting Machine
HSQ-320 Label Slitting Machine

Automatic Adhesive Label Slitting Machine

Model: HSQ-320

Automatic slitting machine is the auxliary products of automatic die cutting machine. It has functions of automatic meter counting,number counting.

Online Inquiry
PDF Download
Product Description
Technical Parameters
Product Display
Recommended Products
Product
Description

The Automatic Label Slitting Machine has functions of automatic meter counting,number counting, The unwinding is controlled by photoelectric eyes. The structure is compact with high speed high efficiency,easy and steady operation.

Technical
Parameters
Technical

Slitting Speed

120m/min

Max.Web Width

320mm

Max.Unwinding Diameter

500mm

Max.Rewinding Diameter

500mm

Precision of Slitting

±0.10mm

Voltage

220V 1phase



Specification

Part

HSQ-320

Magnetic Clutch

(China)

Magnetic brake

(China)

Web Guiding motor

China

Counting

SICK from Germany

Photoelectric

CNBDL

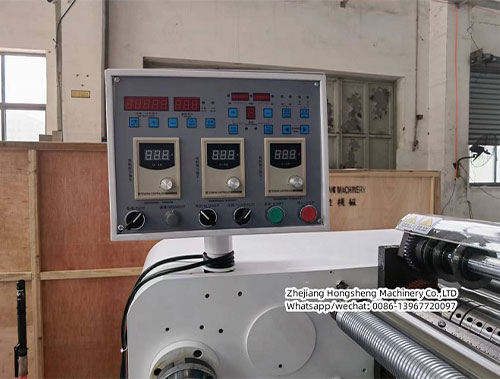

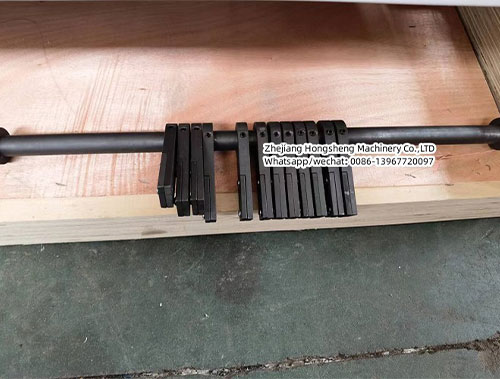

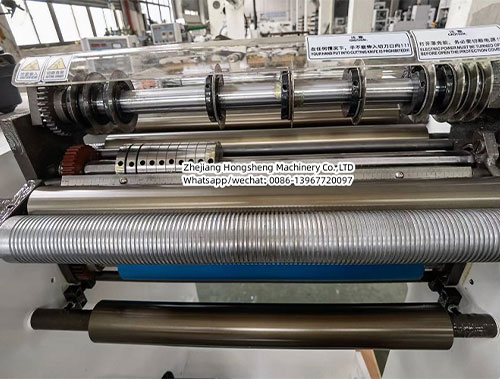

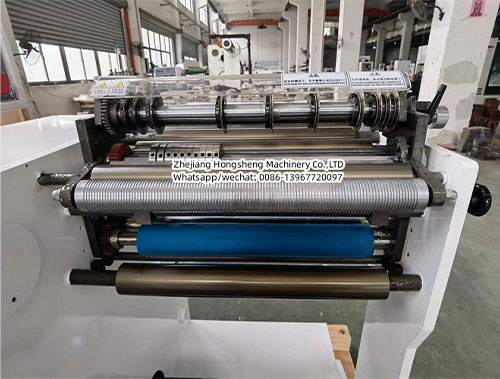

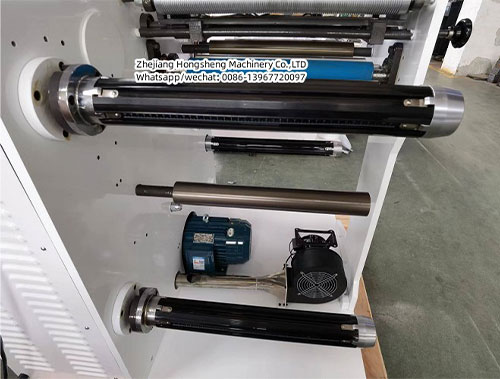

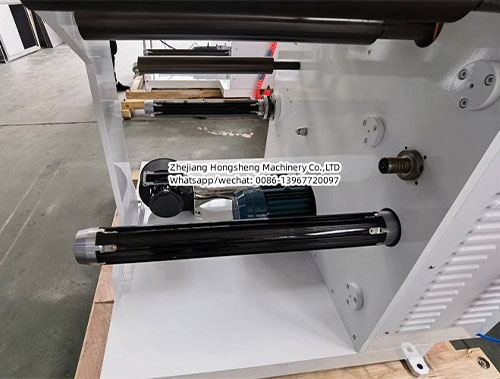

Product Display
