You’re running a label shop. The orders come in — shrink sleeves for bottles, adhesive labels for premium food jars, foil labels for cosmetics. Each job demands crisp print, consistent color, and fast turnaround. The bottleneck isn‘t your press speed — it’s the drying.
A label flexo printing machine with UV drying changes the equation. Instead of waiting for ink to evaporate, UV ink cures instantly under ultraviolet light. The result: higher line speeds, sharper images, and better adhesion on challenging substrates like films and foils. Hongsheng‘s CFLEX series delivers 1–9 colors with servo-driven registration, 360-degree adjustment, and inline die-cutting and slitting. This guide covers what makes UV flexo different, which models fit your operation, and why it’s the go-to choice for label shops that want to grow.
The drying method determines everything about label production — speed, quality, and substrate range.
UV drying uses ultraviolet light to cure ink instantly as it leaves the printing unit. Unlike IR drying, which relies on heat to evaporate solvents, UV curing is a photochemical reaction. The ink transforms from liquid to solid in milliseconds. The result: higher line speeds without smudging, and immediate readiness for rewinding.
Films, foils, and shrink sleeves don‘t absorb ink the way paper does. With conventional drying, the ink sits on the surface and can smear or scratch. UV ink crosslinks and bonds to the substrate, creating a durable, scratch-resistant finish. For label converters running plastic films and metallic foils, UV drying is non-negotiable.
UV ink doesn’t spread or wick into the substrate. Dot gain is minimized, and fine details stay crisp. The water-cooling device for carrier rollers ensures that thin film materials are not subject to heat distortion during UV curing. For high-end labels — cosmetics, beverages, premium packaging — this clarity is what sets your work apart.
Hongsheng‘s CFLEX series is designed for label shops that need flexibility, precision, and UV curing capability.
The CFLEX series is available in configurations from 1 to 9 colors. The CFLEX-340-8C and CFLEX-340-9C-2D models handle complex multi-color designs that 2- or 4-color presses can‘t manage. For label shops running diverse work — simple monochrome to high-end process color — the color flexibility means one press does it all.
Each printing unit is driven by a servo motor, providing precise registration even at high speeds. The 360-degree registration adjustment allows fine-tuning without stopping the press. For variable data printing — barcodes, QR codes, serial numbers — that precision is essential.
The CFLEX series integrates flexo printing, die-cutting, slitting, inspection, and folding into a single pass. Instead of running labels through multiple machines, you do it all inline. The modular unit concept separates flexo, die-cutting, unwinding, and rewinding into independent units, improving productivity and reducing handling time.
Hongsheng offers multiple UV flexo configurations, from 4-color to 9-color, with widths from 340mm to 950mm. The right model depends on your label types and volume.

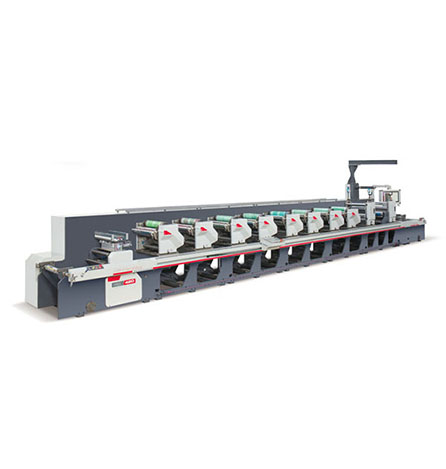

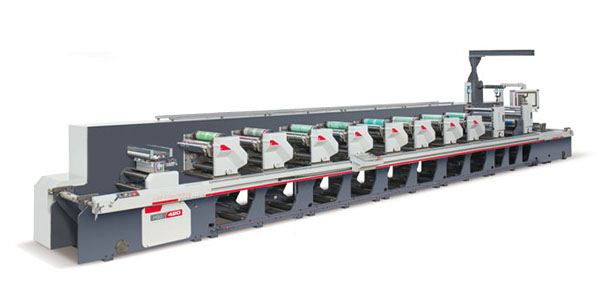

These models use a single servo motor per station for stable registration at high speeds. They handle films, labels, papers, and plastics with UV curing for instant drying. Suitable for label shops running a mix of substrates and job sizes.
This model adds automatic registration control on top of the single servo motor system. The Yaskawa system ensures consistent registration even during high-speed production. Ideal for high-volume runs where consistency is critical.
With 9 colors and a dual-servo system, this model handles the most demanding label designs. Each printing unit adopts 360-degree registration adjustment. For converters running premium labels, pharmaceutical packaging, or high-end food labels, the additional colors and precision are worth the investment.
Below is a quick reference table for UV flexo configurations:
| Model | Colors | Servo Type | Max Width | Best For |
|---|---|---|---|---|
| CFLEX-370/450/530 | 4–8 | Single servo per station | 370–530mm | General label printing |
| CFLEX-340-8C-S | 8 | Single servo + auto registration | 340mm | High-volume automatic runs |
| CFLEX-340-9C-2D | 9 | Single servo + Yaskawa system | 340mm | Complex multi-color work |
Q: What’s the difference between UV drying and IR drying in label printing?
A: IR (infrared) drying uses heat to evaporate solvents from the ink. It’s slower and less effective on non-porous substrates like films and foils. UV drying uses ultraviolet light to cure the ink instantly through a photochemical reaction. UV drying enables higher speeds, better adhesion on challenging substrates, and immediate rewinding without smudging. For label shops running films, foils, or shrink sleeves, UV drying is the standard.
Q: What substrates can a UV flexo printing machine handle?
A: UV flexo printing machines handle adhesive labels, plastic films, cardboard, aluminum foil, and more. The UV curing process ensures that ink adheres to non-porous surfaces without smudging or scratching. For converters running diverse substrates, the UV flexo configuration provides the flexibility that IR dryers can‘t match.
Q: What optional features are available on UV flexo machines?
A: Optional features include die-cutting, slitting, inspection, folding, cold foil stamping, laminating, and screen printing. These inline finishing options reduce handling time and eliminate the need for separate finishing equipment. For label shops looking to expand capabilities without adding floor space, these options are game-changers.
Hongsheng Machinery manufactures label flexo printing machines with a focus on precision, durability, and user-friendly operation. The CFLEX series is available in 4 to 9 colors with servo-driven registration, UV curing, and optional inline finishing. The advanced control system delivers perfect printing and minimized losses.
The high-definition operator panel makes setup and operation straightforward. The modular design allows for easy maintenance and upgrades. For label converters, the combination of UV drying capability, servo precision, and flexible color configurations makes Hongsheng‘s CFLEX series a practical choice.
Before you commit to a UV flexo machine, evaluate your typical substrates, color requirements, and inline finishing needs. The CFLEX series covers the range — 4 to 9 colors, UV drying, and optional finishing — so you can configure the press that matches your label shop’s growth trajectory.
Ready to explore UV flexo printing for your label shop? Contact Hongsheng Machinery for a quote or product consultation on the CFLEX series. Share your typical label materials, color count, and finishing requirements — their team can recommend the right UV flexo configuration for your specific application.
