Your label printing operation is only as good as the finishing equipment behind it. The die-cutting step is where printed label stock becomes finished product—and the machine you choose determines whether those finished products meet spec or end up in the reject bin.
A Label Die Cutting Machine transforms roll or sheet stock into finished labels. It’s the machine that cuts circles, squares, custom contours, and intricate shapes with the precision that your customers demand. Hongsheng Machinery manufactures a range of label die cutting solutions—from high-speed flatbed to rotary configurations—built for different production volumes and application requirements.
This guide covers the types of label die cutting machines, key specifications that matter in real production, and the applications where each configuration excels. For packaging production managers and label converters, this is a practical framework for choosing the right equipment for your operation.
Label die cutting machines come in two main configurations: flatbed and rotary. Each has its strengths.
Flatbed die cutting uses a flat die that presses down onto the label stock. It‘s ideal for short to medium runs, intricate shapes, and applications where tooling cost is a concern. Hongsheng’s flatbed machines are available in 320mm and 420mm widths, with a die cutting range of 300×300mm and 400×400mm. The HSM-320-420-H-L model can achieve high-precision die-cutting and hot stamping effects, widely applied in packaging and printing. Optional functions include laminating, hot stamping, and sheet cutting.
Rotary die cutting uses a cylindrical die that rotates against an anvil cylinder. It‘s the faster option, designed for long production runs where speed is critical. Rotary machines are available in standard widths of 320mm, 450mm, and 570mm. The HSD-320G-2 Double Stations Rotary Die Cutting Machine can perform die cutting and slitting together. Rotary die cutters support optional functions like sheet cutting and laminating.

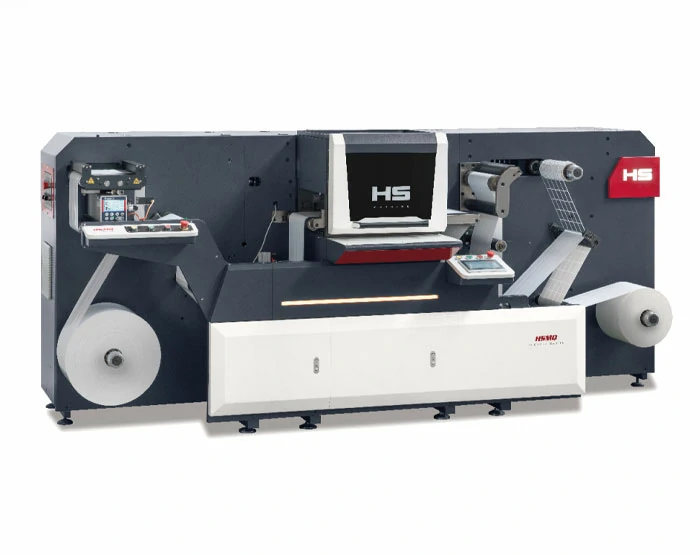

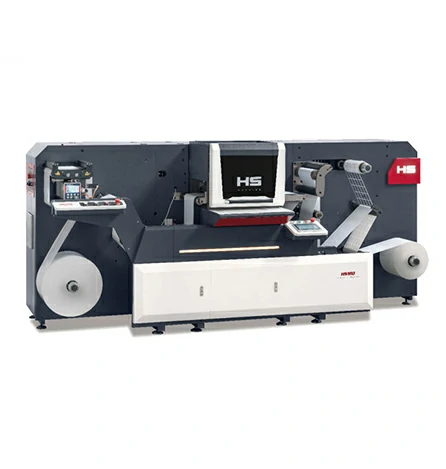

For shops that need the precision of flatbed cutting with higher throughput, high-speed flatbed die cutters bridge the gap. The HSMQ-350-450 High Speed Flatbed Die Cutting Machine is a stable, high-speed automated die-cutting equipment that can complete die-cutting quickly and efficiently. It runs at 450 times per minute and offers optional laminating, hot foil stamping, and sheet cutting.
Behind the cutting action is a combination of drive systems, precision components, and control technology.
Servo-driven label die cutting machines offer precise control over speed, position, and registration. The HSMQ-350-450 is equipped with a servo motor for high-speed operation, ensuring consistent die-cutting quality across long runs. Servo control reduces mechanical wear and improves accuracy.
The core specification that matters is cutting accuracy. Hongsheng‘s flatbed die cutting machines achieve ±0.10mm accuracy for models without a paper feeding machine. With a paper feeding machine, the accuracy improves to ±0.10mm with registration system. The hot stamping accuracy with registration system is ±0.08mm. These numbers are the difference between a label that aligns perfectly and one that doesn’t.
The machine features an anti-static sheet guiding system that ensures smooth paper feeding and reduces sheet misalignment. The HSMQ-350-450 includes a pneumatic clutch for soft, safe operation, and a sheet up and down overlapping delivery system for reliable output. A double-sheet detector prevents misfeeds, reducing waste and protecting the die.
Label die cutting machines handle a range of label stocks and can be integrated into different production workflows.
The HSMQ-350 is suitable for all kinds of paper and self-adhesive labels. Optional configurations extend the capability to handle thermal paper and plastic films. This versatility allows a single machine to serve different product lines without modification.
Label die cutting machines are used for:
Self-adhesive labels for consumer goods, food packaging, and personal care
Thermal paper labels for retail and logistics
Plastic film labels for durable or waterproof applications
Paper labels for packaging and general commercial use
Web and sheet feeding for different production configurations
For converters who need to print and die-cut in a single pass, the HSM-320-420-H-L inline flexo printing and die-cutting machine offers both capabilities. This eliminates a separate printing step and reduces handling, improving efficiency for high-volume label production.
The die cutting machine doesn‘t operate in isolation. It needs to work with your existing equipment and production flow.
Different label die cutting machines handle different feed types. Flatbed machines can be configured for either web or sheet feeding, giving you flexibility based on how your labels are produced. The HSMQ-350-450 is available in 350mm and 450mm widths, matching common label press sizes.
Optional functions expand what the machine can do. Laminating adds a protective layer to labels. Hot stamping creates metallic effects on packaging and labels. Sheet cutting converts roll stock into sheets for downstream processing. These options allow the machine to grow with your business. The HSM-320-420-H-L supports laminating, hot stamping, and sheet cutting as optional functions.
Hongsheng offers machines at different automation levels. The semi-automatic label die cutting machine is an economical option for small to medium production runs. The fully automatic high-speed flatbed die cutting machine is designed for high-volume production where speed and efficiency are critical. Choosing the right automation level depends on your production volume and budget.
| Feature | HSM-320-420 | HSMQ-350-450 | HSD-320G |
|---|---|---|---|
| Type | Flatbed with hot stamping | High-speed flatbed | Rotary double stations |
| Max Speed | Standard | 450 times/min | High speed |
| Accuracy | ±0.10mm | ±0.10mm | High precision |
| Optional Functions | Laminating, hot stamping, sheet cutting | Laminating, hot stamping, sheet cutting | Sheet cutting, laminating |
| Paper Feeding Machine | Optional | Included (optional) | Standard |
What’s the difference between a flatbed die cutting machine and a rotary die cutting machine for labels?
Flatbed die cutters use a flat die that presses down onto the material. They‘re ideal for short to medium runs and offer excellent precision at a lower tooling cost. Rotary die cutters use a cylindrical die that rotates continuously, making them faster and better suited for long runs. If you run a mix of job lengths, a flatbed die cutter with high-speed capability (like the HSMQ-350-450) provides flexibility. If you run mostly long runs of simple shapes, a rotary die cutter delivers the highest output.
What material thickness can a label die cutting machine handle?
Label die cutting machines are designed for thin, flexible materials. The HSMQ-350-450 handles paper and self-adhesive labels of standard label stock thickness. For thicker materials like cardboard or plastic cards, a different type of die cutting equipment would be needed. Hongsheng also manufactures roll die punching and die cutting machines for corrugated and heavier materials.
Can I add a laminating or hot stamping function later?
Yes. Hongsheng offers these as optional functions that can be specified at the time of order. For some models, these functions can also be retrofitted. If you‘re not sure whether you’ll need them, discuss your potential future requirements with the supplier so the machine can be specified with the necessary mounting and drive provisions.
Hongsheng Machinery has been designing and manufacturing die cutting and printing equipment for the label and packaging industries.
Hongsheng Machinery offers a range of label die cutting solutions: the HSM-320-420-H-L inline flexo printing and die-cutting machine for combined printing and cutting, the HSMQ-350-450 high-speed flatbed die cutting machine for efficient high-speed production, the HSD-320G-2 double stations rotary die cutting machine for high-speed rotary cutting, and the semi-automatic label die cutting machine for economical small to medium production.
Common features across the range include ±0.10mm accuracy, anti-static sheet guiding systems, pneumatic clutch for soft operation, double-sheet detection, and servo-driven precision control. Optional functions like laminating, hot stamping, and sheet cutting provide additional production flexibility. Hongsheng provides comprehensive after-sales support, including installation, training, and technical assistance, ensuring that the equipment integrates smoothly into your production line.
Choosing the right label die cutting machine is about matching the equipment to your production volume, material types, and finishing requirements. Flatbed die cutters offer precision and flexibility for mixed production. Rotary die cutters deliver speed for long runs. High-speed flatbed machines bridge the gap, offering the precision of flatbed with throughput approaching rotary speeds. With the right machine and proper support, you can turn printed label stock into finished product efficiently and consistently.
Ready to evaluate a label die cutting machine for your operation? Reach out to Hongsheng Machinery’s team—they can provide machine specifications, application guidance, and production recommendations based on your specific label requirements.
